Features
- PCAP size from 1.3 in to 65 in
- PCAP & LCD module size: 1.3 in x 32 in
- Optical Bonding service: 1.3 in to 21.5 in

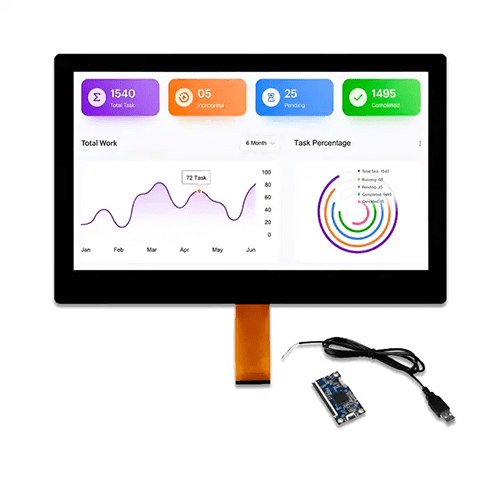

- HDMI & VGA T-CON Board available
- IIC-USB interface Bridge board available
- CTP can be Customized with cover glass surface treatment process AG (anti-glare), AR (anti-reflective), AF (anti-fingerprint)
- Support touch with 0.47 in cover glass.
- Support touch with pool of water
- Support touch with 19685 in gloves
- Custom Highlight TFT (Up to 2300 cd / m2)
- Support operating temperature: -40 °F to 185 °F (-40 ℃ to 85 ℃)

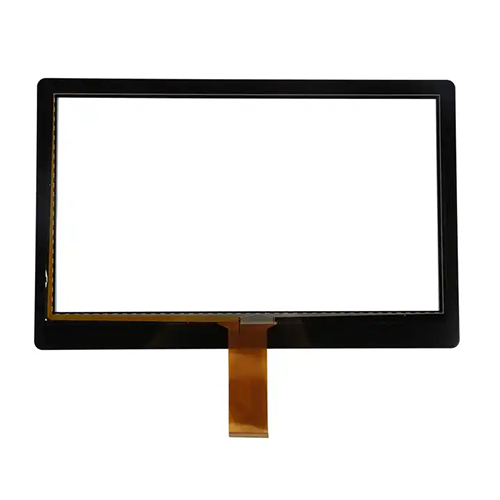

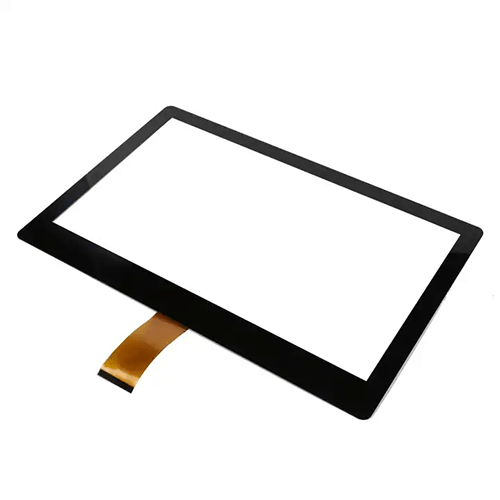

Technical Specifications
| Interface Type | I2C / USB |
| Structure | G+G |
| Controller IC | ILITEK |
| Touch Points | 10 Points |
| Transparency | ≥70% |
| Surface Hardness | ≥3 H |
| Power Supply Voltage | 5.0 V |
| Support Systems | Windows / android / linux etc. |
| Operating Environment | -4 oF to 158 oF (-20 oC to 70 oC), ≤85% RH |
| Storage Environment | -22 oF to 176 oF (-30 oC to 80 oC), ≤85% RH |
| Outline Dimension | 15.31 in x 9.32 in x 0.07 in (389 mm x 237.05 mm x 2 mm) |
| Viewing Area | 13.6 in x 7.66 in (345.43 mm x 194.74 mm) |
| Size | 15.6 in (396.24 mm) |
