Features

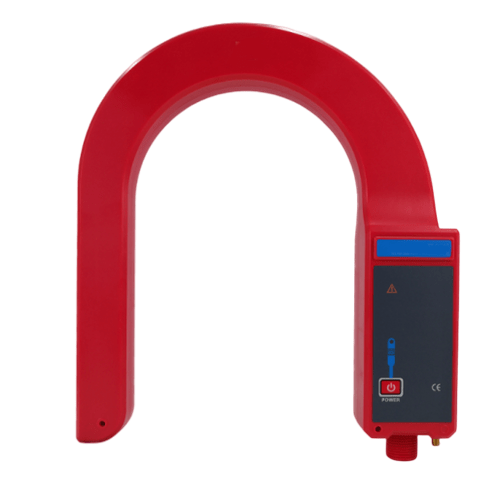

- Hook diameter
- Double layer flexible coil, high linearity
- Current range 10 mA to 6000 A or 20000 A
- Current resolution 10 mA
- Phase 45 Hz to 75 Hz
Technical Specifications
| Function | High or low voltage leakage current, current and phase test; grounding iron current, transformer load test; underground, thick cable leakage current patrol |
| Power | DC 3.7 V rechargeable Li-battery, USD port, 10 hours continuously |

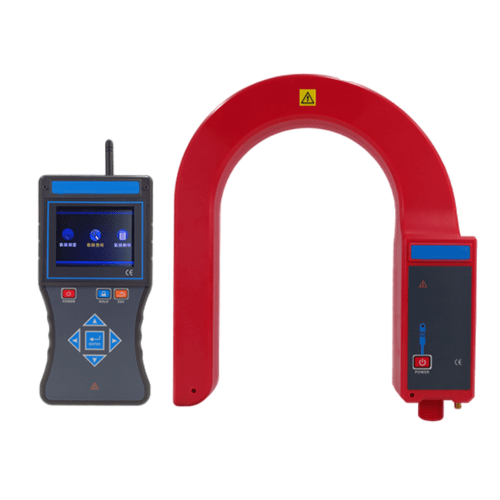

| Transmit method | 433 MHz wireless transmit |
| Transfer distance | OD 492.1 ft (150 m) |
| Display mode | 3.5 true color LCD display, press arrows to adjust background luminance |
| Test range | AC 10 mA to 6000 A or AC 10 mA to 20000 A (B type), phase 45 Hz to 75 Hz |
| Resolution | 10 mA, 0.1 Hz |
| Current accuracy | 0.00 A to 99.9 A, ± 2 % ± 5 dgt, 100 A to 6000 A, ± 3 % ± 5 dgt, 6.00 kA to 20.0 kA, ± 4 % ± 5 dgt |
| Frequency accuracy | ± 1 Hz |

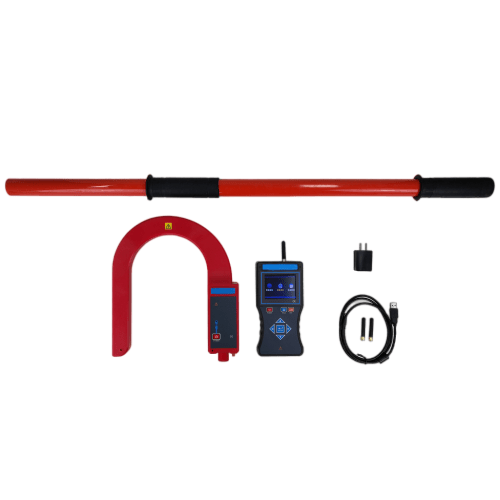

| Insulation size | After Stretch length 196.8 in (5 m), after shrink length 39.3 in (1 m) |
| Circuit voltage | 35 kV below bare wire test, 110 kV below safety insulation shell test (with insulation rod) |
| Insulation strength | Insulation rod AC 110 kV or rms (testing two ends after 5 sections stretched,) Detector 2000 V or rms (insulation connection head to hook CT head) Detector 2000 V or rms (insulation connection head to hook CT head) |
| Working humidity | 14 °F to 104 °F (-10 °C to 40 °C), 80 % Rh |
| Storage humidity | 14 °F to 140 °F (-10 °C to 60 °C), 70 % Rh |
| Meter weight | Hook 17.4 oz (496 g) (with battery), receiver 13.9 oz (395 g) (with battery), insulation rod 3.1 lb (1.45 kg) |
| Testing cable diameter | Diameter 6.6 in x 9.6 in (168 mm x 245 mm) |
