Features
- Remote-first deployment: Built for full autonomy; accessible via mobile or web through 4G or Wi-Fi—no more trekking to blasting zones.
- High-precision capture: 24-bit A/D output and broad dynamic range ensure you’re not losing detail in the crucial high-frequency or low-amplitude data.
- Automated alerts: Pixel-perfect for ensuring safety compliance—alarm triggers and real-time notifications lock your peace of mind.
- Robust build: Aluminium shell, IP-grade, shock resilient—engineered to survive concrete blasts and dust.
- Flexible data layout: Mix of auto cycles and manual logging adapts to varied blasting schedules and analysis pipelines.
- Easy integration: Its communication flexibility (4G, LAN, Wi-Fi) lets it slot into existing IoT or SCADA systems with minimal fuss.
- Backup and stability: Built-in zeroing keeps data accurate over time without frequent recalibration.
- Unclear warranty—ask before you pay: Custom OEM support is good. But don’t assume long-term coverage without confirmation.
Technical Specifications
| Specification | Details |
| Function | Remote blasting vibration monitoring |
| Sensor Input | Triaxial geophone, direct vibration velocity measurement |
| A/D Resolution | 24-bit data acquisition for high accuracy |
| Communication | Built-in support for 2G/3G/4G, Wi-Fi, LAN, RJ-45—enabling real-time remote access and data push |
| Alarm Capability | Configurable amplitude or offline/power-off alarms with active notifications |
| Calibration | Automatic zero correction ensures reliability over time |
| Housing | Ruggedized aluminium alloy, IP-rated for waterproof and dust protection, resilient against environment and shocks |
| Sampling Rate | Selectable rates: 1 ksps up to 100 ksps, supporting detailed vibration capture |
| Range & Resolution | Velocity measurement range: 0.0001 cm/s to 35 cm/s—covers low to high amplitude blasts |
| Frequency Bandwidth | Designed for blasting frequencies, typically 1–500 Hz range |
| Recording Modes | Supports cycle recording and manual segmented recording with configurable durations |
| Timekeeping Accuracy | Clock drift ≤ 5 seconds per month |

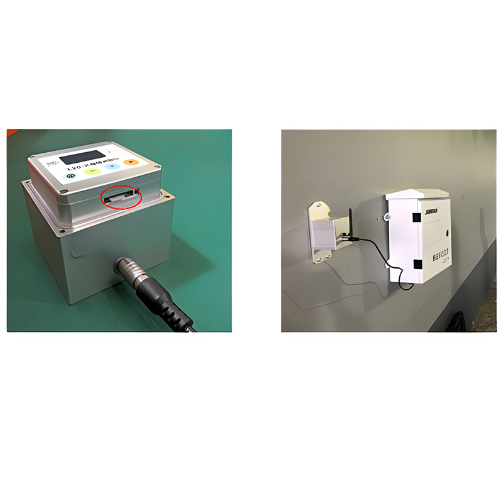

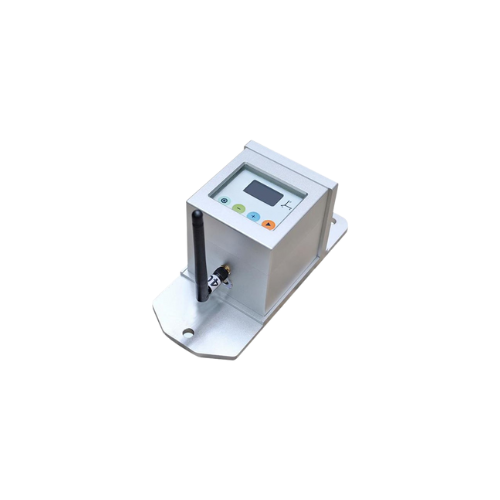

| Construction | Square aluminium body for easy mounting in various positions—floor, wall, roof |
| Warranty | (Not specified, but OEM listings typically offer 1–3 year warranty) |
