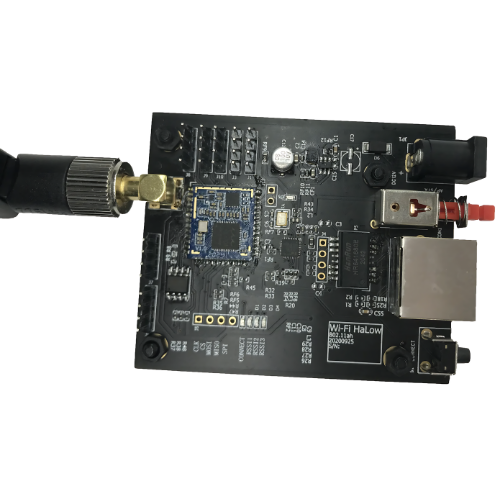

Wi-Fi HaLow 900MHz Module, 8000 Nodes, 1200m Range, Low Power - Hospitality Enviro Tech

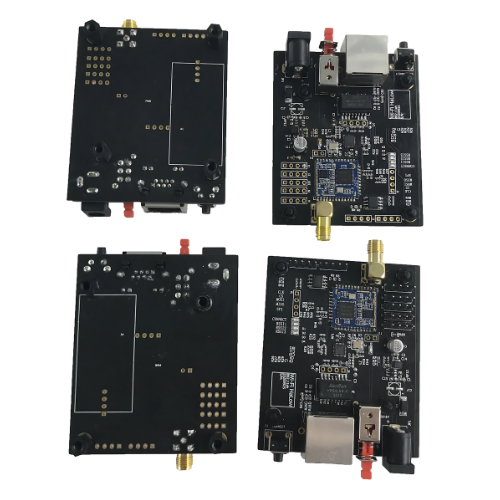

Wi-Fi HaLow 900MHz Module, 8000 Nodes, 1200m Range, Low Power - Hospitality Enviro Tech - Image 2

Wi-Fi HaLow 900MHz Module, 8000 Nodes, 1200m Range, Low Power – Hospitality Enviro Tech

900MHz Wi-Fi HaLow module with 8000-node support, 1200m range, 20dBm power, and versatile connectivity options for robust low-power networks.

SKU: HETWHD-111 Category:

Technical Specifications

Wireless networking protocol IEEE802.11ah
Model TLLTX AH R700A
Frequency 730 MHz to 790 MHz
Connector RMII, SDIO, USB, SMA
MCS 0 to 7，10（only for 1Mhz）
Width 1 MHz,2 MHz,4 MHz,8 MHz
Transmission rate 150 Kbps to 32.5 Mbps
Transmit Power 20 dBm
Network coverage 1200 m
Operating Voltage 5V
Dimension 2.87 in x 2.44 in x 0.59 in (73 mm x 62 mm x 15 mm)
Operating Temperature −4 ℉ to 158 ℉ (-20 ℃ to 70 ℃)
