Overview

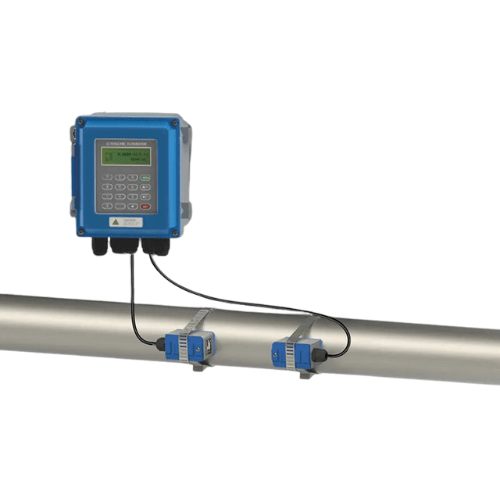

Hospitality Enviro Tech Ultrasonic Clamp-On Flow Meter with Heat Measurement stands out with high accuracy, a robust design for durability, versatility in accommodating various pipe sizes and liquid types, flexible installation options, and the added capability of supporting heat/energy measurement. These features translate into benefits such as precise data, reduced maintenance costs, adaptability, and comprehensive monitoring, providing users with a reliable and efficient solution for their diverse flow measurement needs.
Technical Specifications
| Power Consumption | Less than 1.5 W |
| Measurement Principle | Transit-time measurement principle |
| Power Supply | 90 VAC to 230 VAC |
| Output | RS 232 C |
| Protection Class | IP 65 |
| Memory | Automatic memory of positive, negative, net totalizer flow rate, and heat quantity of the last 512 days, 128 months, 10 years |
| Pipe Material | All metals, most plastics, fiberglass, etc. |
| Compatibility | Can work along with PT100 temperature sensor as an ultrasonic heat meter |
| Accuracy | Better than ±1.0% |
| Repeatability | 0.20% |
| Measurement Period | 0.5 S |
| Display | LCD with backlight, 2 x 20 letters |
| Environment Humidity | 85% RH |
| Liquid Temperature Range | −40 °F to 320 °F (-40 °C to 160 °C) |
| Environment Temperature | −22 °F to 176 °F (-30 °C to 80 °C) |
| Pipe Size | 0.59 in to 236.22 in (DN 15 mm to 6000 mm) |
