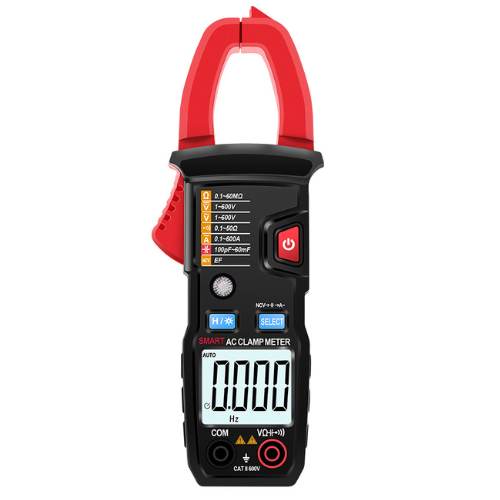

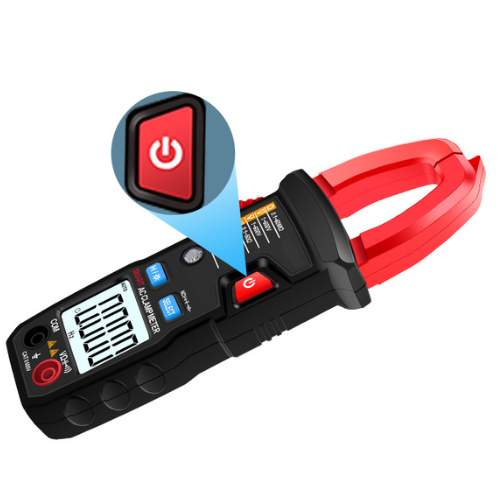

Features
- True RMS measurement for accurate AC readings
- NCV detection for safe, non-contact voltage testing
- Auto-ranging with multiple measurement modes
- Large backlight LCD screen for easy reading
Technical Specifications
| Display Type | Backlight LCD screen, 6000 counts |
| AC Current Range | 6 A to 600 A, resolution 0.01 A, ± (1.2% + 8 dgt) up to 60 A; ± (2.2% + 8 dgt) up to 600 A |
| AC Voltage Range | 6 V to 600 V, resolution 0.001 V to 0.1 V, ± (1.0% + 5 dgt) to ± (1.2% + 8 dgt), frequency 40 Hz to 1 kHz |
| DC Voltage Range | 6 V to 600 V, resolution 0.001 V to 0.1 V, ± (0.5% + 5 dgt) to ± (0.8% + 5 dgt) |
| Resistance Range | 600 Ω to 60 MΩ, resolution 0.1 Ω to 10 kΩ, ± (1.0% + 5 dgt) to ± (1.5% + 5 dgt) |
| Capacitance Range | 6 nF to 60 mF, resolution 1 pF to 10 μF, ± (3.5% + 5 dgt) to ± (8% + 10 dgt) |
| Frequency Range | 10 Hz to 20 MHz, resolution 0.1 Hz to 10 kHz, ± (1.0% + 5 dgt) to ± (4.0% + 5 dgt) |
| Continuity Test | Buzzer sounds for low resistance detection |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Power Supply | 2 × 1.5 V AAA batteries (not included) |
| Product Weight | Approximately 8.11 oz (230 g) |
| Product Size | 7.20 in x 2.56 in x 1.26 in (18.3 cm x 6.5 cm x 3.2 cm) |
