Overview

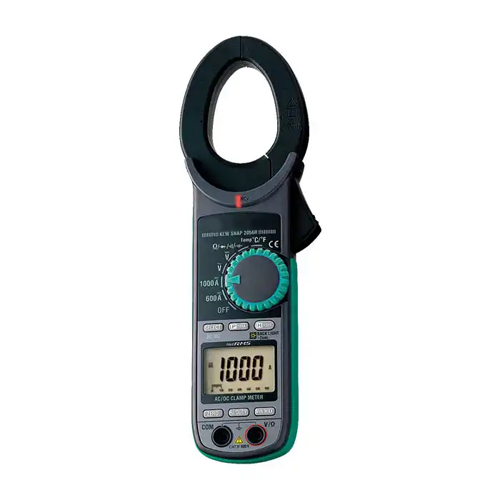

Hospitality Enviro Tech True RMS AC/DC Clamp Meter with NCV & Temperature Probe is designed to meet international safety standard IEC 61010-1 CAT IV 600 V. This clamp meter can measure the voltage and current in both very low and high-power circuits making it very useful for power distribution companies, power utilities and maintenance fields.
Features
- 600 V input protection
- Sleep function saves battery life
- NCV function detects the presence of voltage in an electrical circuit or equipment without touching them
- Temperature measurement with optional k-type temperature probe
- Continuity & diode check
- Capacity measurement
- Peak hold function for peak value measurements on inrush currents (only at AC A range)
- Data hold
- Comfortable double molded main body
- LCD backlight
- 6039 count and bar graph display
- REL function to indicate measurement variation
- Min or Max function
Technical Specification
| AC A | |
| 0 A to 600.0 A or 1000A | ±2.0% rdg ±5 dgt at 50 Hz to 60 Hz ±3.5% rdg ±5 dgt at 40 Hz to 400 Hz |
| AC V | |
| 6 V or 60 V or 600 V Auto Ranging | ±1.5% rdg ±4 dgt at 50 Hz to 60 Hz ±3.5% rdg ±5 dgt at 40 Hz to 400 Hz |
| DC A | |
| 0 to 600.0 A or 1000 A | ±1.5% rdg ±5 dgt |
| DC V | |
| 600 mV or 6 V or 60 V or 600V Auto Ranging | ±1.0% rdg ±3 dgt |
| General Specifications | |
| Withstand Voltage | 6880 V AC for 5 s |
| Display Type | Digital Only |
| Measuring Current Range | 1000 A |
| Measuring Voltage Range | 600 A |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| AC or DC A | 0 A to 600.0 A or 1000 A |
| AC or DC V | 6 V or 60 V or 600 V Auto ranging |
| Applicable Standard | IEC 61010-1 CAT.IV 600 V, IEC 61010-1-031, IEC 61010-2-032, IEC 61326 |
| Power source | 2 × AAA 1.5 V Batteries |
| Dimensions | 10 in × 3.22 in × 1.41 in (254 mm × 82 mm × 36 mm) |
| Weight | 0.68 lb (310 g) |
