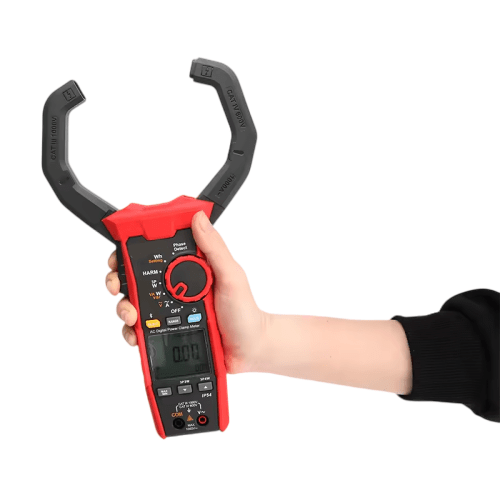

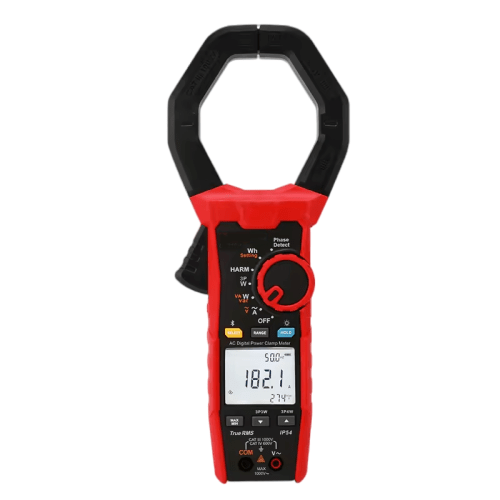

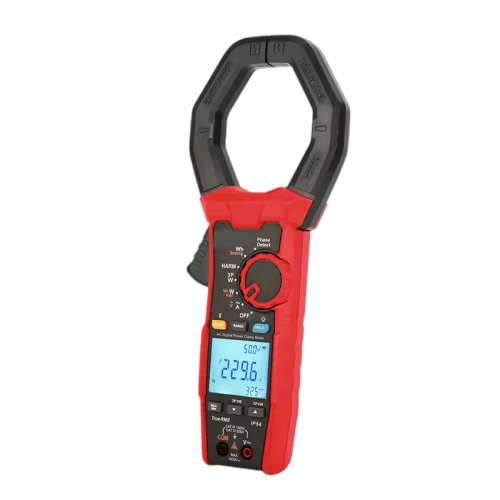

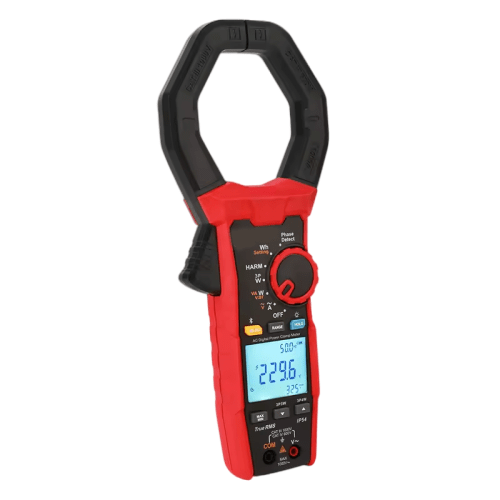

Features
- 1000 An AC current measurement
- 1000 V AC voltage measurement
- AC and DC peak measurement
- Three-phase power measurement (up to 3000 kW)
- Harmonic or THD or Power Factor or Phase Sequence Measurement
- Single Phase power measurement
- Large pliers head (up to 2.9 in (75 mm) diameter)
- True RMS measurement
- Bluetooth 5.0
Technical Specifications
| AC current range | 1000 A |
| AC voltage range | 1000 V |
| Power range (single phase) | 1000 KW |
| Power range (3-phase & 3-wires) | 1732 KW |
| Power range (3-phase & 4-wires) | 3000 KW |
| Power frequency range | 15 Hz to 1000 Hz |
| Phase angle range (-180° to 179.9°) | 15 Hz to 40 Hz, 40 Hz to 70 Hz, 70 Hz to 1000 Hz |
| AC current accuracy | ± (1.5 % + 3) |
| AC voltage accuracy(V) | ± (0.7 % + 3） |
| Power accuracy (single phase) | ± (1.7 % + 5） |
| Power accuracy (3-phase & 3-wires) | ± (1.7 % + 5） |
| Power accuracy (3-phase & 4-wires) | ± (1.7 % + 5） |
| Power frequency accuracy | ± (0.3 % + 3） |
| Phase angle accuracy (-180° to 179.9°) | ± 5°, ± 3°, ± 5° |
| Power factor range | -1 to 1 |
| Power factor accuracy | Based on the Accuracy of the Phase angle |
| Phase detection | 80 V to 1000 V |
| Harmonic measurement | 32 times |
| Display mode | LCD screen |
| Auto power off | 15 minutes |
