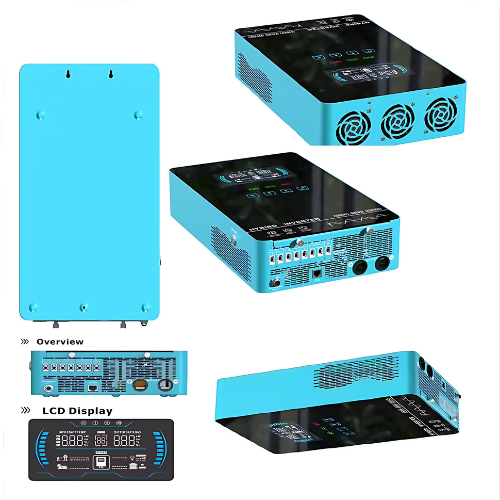

Overview
Adaptive inverter with 230 V AC output, selectable voltage range of 175 V to 265 V for PCs and 90 V or 265 V for home appliances, and auto-sensing 50 Hz or 60Hz frequency for versatile use.
Technical Specifications
| Voltage | 230 VAC |
| Selectable Voltage Range | 175 VAC to 265 VAC (For Personal Computers) 90 VAC to 265 VAC (For Home Appliances) |
| Frequency Range | 50 Hz or 60 Hz(Auto sensing) |
| Battery Voltage | 24 VDC |
| Bulk Charging Voltage Flooded Battery | 29.2 VDC |
| Bulk Charging Voltage AGM/GEL battery | 28.6 VDC |
| Floating Charge Voltage | 27.6 VDC |
| Overcharge Protection | 32 VDC |
| Maximum Charge Current | 150 A |
| Dimension | 3.93 in x 11.8 in x 17.7 in (100 mm x 300 mm x 450 mm) |
| Net Weight | 19.8 lbs. (9000 g) |
