Features
- Accurate three-phase voltage, current, and power measurement

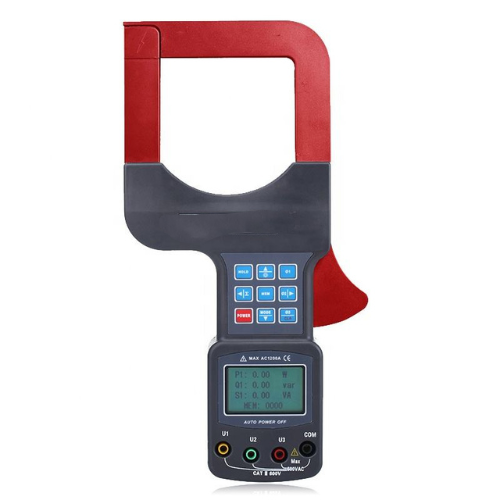

- Large 3.15 in (80mm) clamp fits thick cables and flat busbars
- Advanced magnetic shielding for stable, precise readings
- Clamp CT and integral test modes for versatile use
- Measures active, reactive, apparent power, phase, and frequency
- Stores up to 200 data sets for easy data review

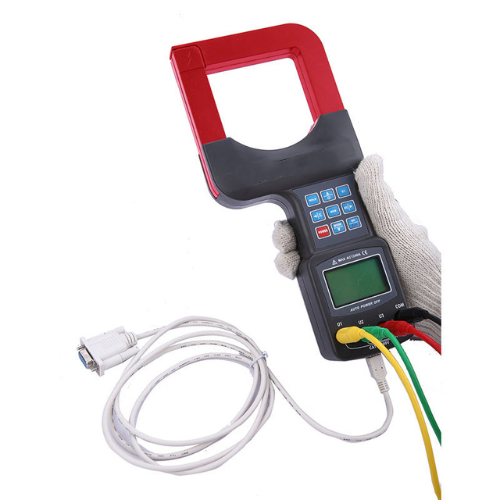

- RS232 interface for real-time data transfer and monitoring
- Backlight display with data hold and print functions
- Ideal for wiring checks, leakage current, and power diagnostics
Technical Specifications
| Power | 6 V DC |
| Test Mode | Clamp CT, integral mode |
| Working Temperature & Humidity | 14 °F to 104 °F (–10 °C to 40 °C); 80% RH |
| Current Range | AC 0.00 mA to 1200 A, Resolution: 0.01 mA |
| Power Range | AC 0.5 W to 720 KW, Resolution: 0.01 W |
| Voltage Range | AC 0 V to 600 V, Resolution: 0.01 V |
| Frequency Range | 25 Hz to 100 Hz, Resolution: 0.1 Hz |
| Phase Range | 0.0° to 360.0°, Resolution: 0.1° |
| Communication Wire Length | 5.9 ft (1.8 m) |
| Product Dimension (L x W x H) | 9.45 in x 8.27 in x 3.94 in (24 cm x 21 cm x 10 cm) |
| Product Weight | 7.7 lb (3.5 kg) |
