Overview

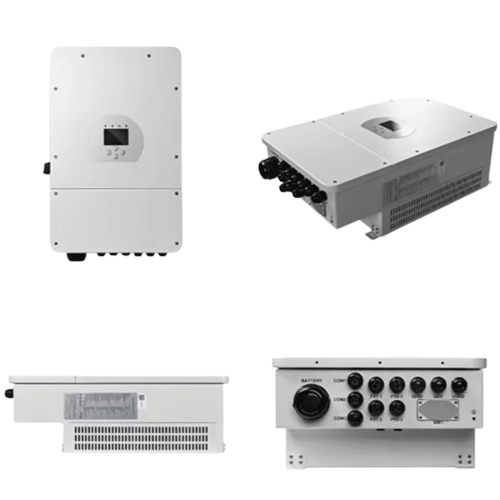

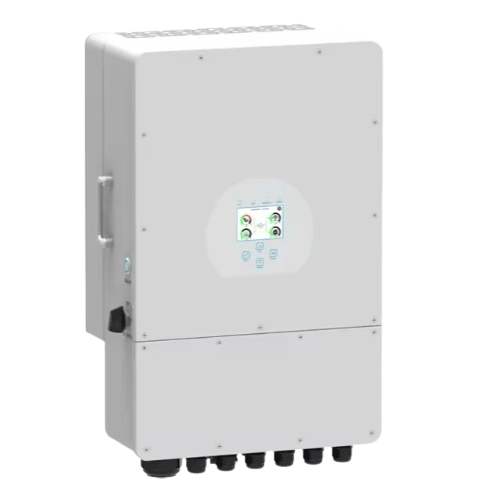

Hospitality Enviro Tech 48V Three Phase Hybrid Solar Inverter 8KW 10KW 12KW with MPPT – Hospitality Enviro Tech offers a high-efficiency solar power solution designed for residential and commercial energy systems. This device supports both Lead-acid and Li-Ion batteries, automatically adapting to the battery management system (BMS) for optimized charging. It features smart cooling, IP65 protection, and operates efficiently within a temperature range of -40°F to 140°F (-40℃ to 60℃), ensuring reliable performance in diverse environments. This product provides triple-phase AC output with high MPPT efficiency, integrated protection against overvoltage, overcurrent, and reverse polarity, and enables seamless monitoring via RS485 or CAN communication. Its compact wall-mounted design, lightweight build, and robust performance make it ideal for hybrid solar installations.
Features
- Supports 48V Lead-acid or Li-Ion batteries with adaptive BMS charging
- Three-phase output with high inverter efficiency up to 99.9%
- DC input power up to 15.6 kW for large solar arrays
- Smart cooling system for stable operation in -40°F to 140°F (-40℃ to 60℃)
- Integrated protections: overcurrent, overvoltage, short circuit, surge, and anti-islanding
- High MPPT efficiency of 99.9% for optimal solar energy tracking
- Wall-mounted design with IP65 weatherproof protection
- Low noise operation under 45 dB
- Supports RS485 and CAN communication for battery management integration
Technical Specifications
| Battery Type | Lead-acid or Li-Ion |
| Battery Voltage Range | 40 V to 60 V |
| Max. Charging Current | 190 A to 240 A |
| Max. Discharging Current | 190 A to 240 A |
| External Temperature Sensor | Yes |
| Charging Curve | 3 Stages to Equalization |
| Charging Strategy | Self-adaption to BMS |
| Max. DC Input Power | 10400 W to 15600 W |
| Rated PV Input Voltage | 550 V (160 V to 800 V) |
| Start-up Voltage | 160 V |
| MPPT Voltage Range | 200 V to 650 V |
| Full Load DC Voltage Range | 350 V to 650 V |
| PV Input Current | 13+13 A to 26+13 A |
| Max. PV Isc | 17+17 A to 34+17 A |
| Number of MPPT Trackers | 2 |
| Strings per MPPT Tracker | 1 to 2+1 |
| Rated AC Output Power | 8000 W to 12000 W |
| Max. AC Output Power | 8800 W to 13200 W |
| AC Output Rated Current | 12.1 or 11.6 A to 18.2 or 17.4 A |
| Max. AC Current | 18.2 or 17.4 A to 27.3 or 26.1 A |
| Max. Continuous AC Passthrough | 45 A |
| Peak Power (off-grid) | 2 times rated power, 10 s |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 50 or 60 Hz; 3L or N or PE, 220 or 380 Vac to 230 or 400 Vac |
| Grid Type | Three Phase |
| DC Injection Current | THD < 3% (Linear load < 1.5%) |
| Max. Efficiency | 97.6% |
| Euro Efficiency | 97.0% |
| MPPT Efficiency | 99.9% |
| Protection | Integrated; PV input lightning, anti-islanding, reverse polarity, insulation detection, residual current monitoring, overcurrent, overvoltage, short circuit, surge |
| Cooling | Smart cooling |
| Noise | <45 dB |
| Communication with BMS | RS485; CAN |
| Operating Temperature Range | -40 °C to 60 °C (-40°F to 140 °F) |
| Weight | 33.6 lb (33.6 kg) |
| Size | 16.6 in x 27.5 in x 11 in (422 mm x 699.3 mm x 279 mm) |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
