Overview

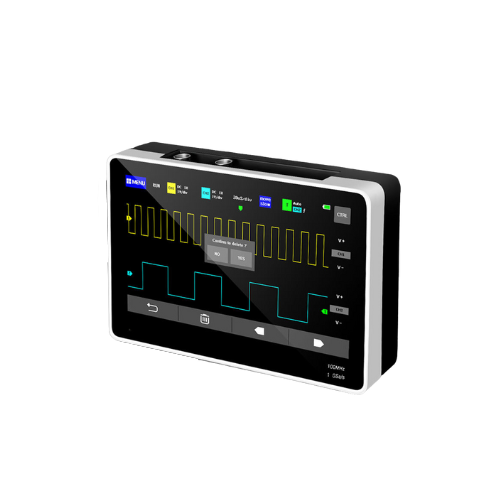

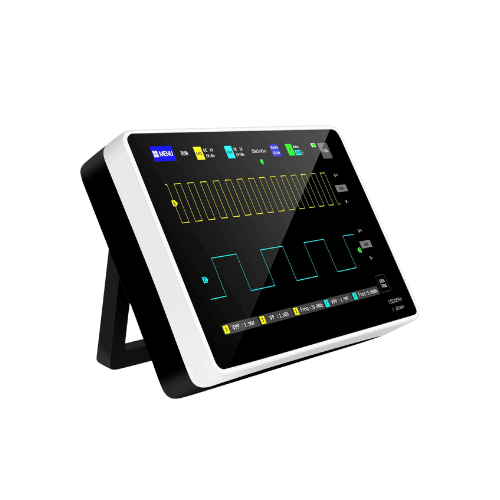

Hospitality Enviro Tech’s 7-Inch Tablet Digital Oscilloscope is a professional-grade instrument designed to provide accuracy, flexibility, and portability for engineers, researchers, and technicians. With its large TFT display, intuitive interface, and robust storage capacity, this oscilloscope simplifies complex waveform analysis. It features dual-channel support, quick triggering functions, and a variety of measurement parameters to ensure precise diagnostics. Built for reliability, it integrates automatic one-button adjustments, waveform management, and extensive sampling depth, making it suitable for laboratories, educational institutions, and field applications.
Features
- Large 7-inch TFT display for clear waveform viewing
- Intuitive one-button auto function for quick adjustments
- Dual-channel operation for versatile testing
- Waveform storage with easy management and retrieval
- Portable, tablet-style design for mobility and ease of use
- Long-lasting rechargeable battery for extended operation
- User-friendly interface with multiple measurement modes
- Compact, durable build suitable for field and lab applications
Technical Specifications
| Channels | 2 |
| Highest Voltage Measurement | 1X: 40 V, 10X: 400 V |
| Cursor Functions | Position XY, Trigger Y |
| LCD Size | 7 in |
| LCD Resolution | 800 x 480 pixels |
| Display Technology | TFT |
| Roll Mode | Supported |
| One-Button Auto | Supported |
| Waveform Storage | 1000 photos + 1000 waveforms |
| Bandwidth | 100 MHz |
| Sampling Rate | 1 GSa/s |
| Waveform Manager | Supported |
| Storage Depth | 240 Kbit |
| Parameters Available | 12 types |
| Input Resistance | 1 MΩ |
| Sensitivity Range | 50 mV to 500 V |
| Time Base Range | 50 s to 10 ns |
| Trigger Mode | Single, Normal, Auto |
| Trigger Edge | Rising or Falling |
| Coupling Options | AC or DC |
| Voltage Accuracy | ±2% |
| Rise Time | < 3 ns |
| Frequency Precision | ±0.01% |
| Power Supply | Built-in 6000 mAh lithium battery |
| Battery Standby | 4 hours |
| Dimensions | 7.24 in x 1.97 in x 4.88 in (184 mm x 50 mm x 124 mm) |
| Weight | 1.76 lb (0.8 kg) |
