Features
- Triple-measurement ready: Captures acceleration, velocity, and displacement — great for on-the-go diagnostics without juggling instruments.
- Dual-frequency acceleration range: Switch between low and high frequency depending on machinery needs—decent flexibility for diagnosing everything from slow-moving components to high-speed bearings.
- Onboard temperature readout: Measures ambient temperature up to 60 °C—handy for conditions compensation when correlating vibration data.
- Battery-after logic: Three AA cells power extended use—but no battery is included, so sling a spare.
- Auto power-off set to 4 min: Reduces unnecessary battery drain—nice, but be mindful if you pause often.
- Portable yet solid: Under 750 g and compact—easy to carry around, but a bit bulkier than other handheld sensors.
- Complete kit out of the box: Comes with probe, handle, case, and manual—researchers and techs can use it immediately.
- Noise-resilient display: LCD remains visible without glare in low-light areas—nice for dim industrial environments.
Technical Specifications
| Specification | Details |
| Vibration Sensor | Piezoelectric shear-type accelerometer |
| Display | 3½-digit LCD |
| Acceleration Range | 0.1–199.9 m/s² (peak value) |
| Velocity Range | 0.1–199.9 mm/s (effective value) |
| Displacement Range | 0.001–1.999 mm (effective value) |
| Accuracy | ±(5% + 2 digits) |
| Frequency Range | Acceleration: 15 Hz–1 kHz (Lo) / 1 kHz–10 kHz (Hi); Velocity & Displacement: 15 Hz–1 kHz (Lo) |
| Temperature Display | 0 °C to 60 °C, ±2 °C accuracy |
| Auto Power-Off | After 4 minutes of inactivity |
| Power Supply | 3 × AA batteries (not included) |
| Operating Conditions | 0 °C to 45 °C; 20% RH to 90% RH (no condensation); Storage: −20 °C to 60 °C |
| Size (Host) | Approx. 150 × 70 × 32 mm (5.9 × 2.8 × 1.3 in) |
| Weight (Host) | Approx. 737 g (26 oz) |

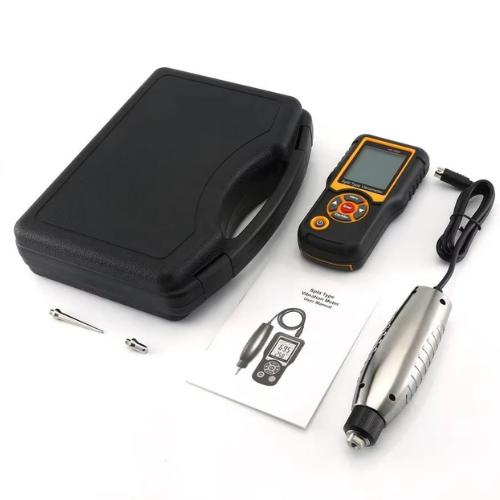

| Included Accessories | Vibration Meter, Probe, Handle, Plastic Carry Case, User Manual, etc. |
| Customization Options | Logo, packaging, graphics possible with MOQ |
