Overview

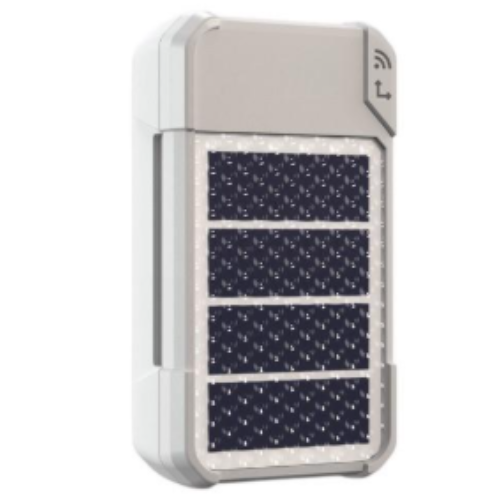

Hospitality Enviro Tech’s solar-powered livestock GPS tracker with satellite coverage is your solution for off-grid tracking of assets, remote IoT operations, and livestock tracking. This low-cost, compact, satellite-based terminal is easy to install and built for rugged outdoor use. Powered by a solar panel that recharges the battery, this device is rugged, reliable enough to track anything that moves, and small and light enough to go unnoticed, regardless of where or how it is mounted. It easily mounts to any fixed or mobile asset for intelligent tracking, monitoring, and integration with wireless sensors through the configurable BLE Sensors interface.
Features
- Compact tracking device
- Solar-powered
- Low-cost tracking
- Built tough for outdoor use
- Ready out-of-the-box

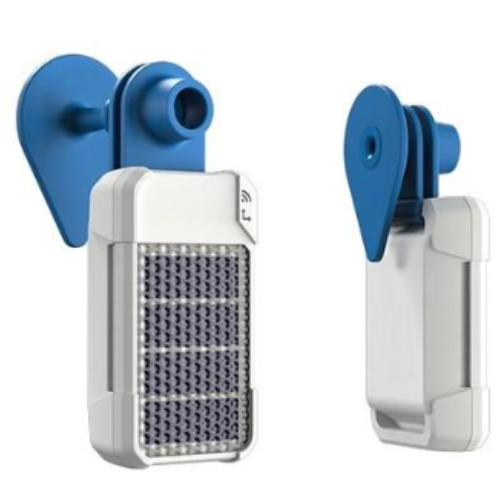

- Modular mounting options
- Satellite coverage
- Nordic core processor
- Rechargeable battery
- GPS receiver
- Embedded Satellite TX and GPS RX combined antenna
- Bluetooth: Low Energy with embedded antenna
- Serial connector
Technical Specifications
| Charging Method | Solar |
| Solar Charge Rate | 0.125 W |
| Battery | Type: Lithium Polymer
Capacity: 150 mAh Lithium content: 0.002 oz (0.054 g) Charge time: Depends on sun exposure |
| Altitude Range | Recommended: up to 40,000 ft (12.192m) |
| Ingress Protection | IP68 (certification pending)
Dust tight – complete protection against contact Liquid immersion up to 3.28 ft (1 m) for 30 min |
| Transmitters | FCC ID: L2V-ST100
IC: 3989A-ST100 |
| Chipsets | GPS Chip: ZOE-M
BLE Chip: NRF 52832 |
| GPS Receiver Type | 72-channel u-blox M8 engine
GPS/QZSS L1 C/A GLONASS L10F BeiDou B1I Galileo E1B/C |
| Temperature | Min (recommended): -22 °F (-30 °C)
Max (recommended): 122 °F (50 °C) |
| Dimensions | Length: 2.25 in (57.1 mm)
Width: 1.25 in (31.8 mm) Height: 0.70 in (17.8mm) |
| Weight | Terminal: 0.783 oz (22.2 g)
Animal Ear Tag: 0.141 oz (4 g) Multipurpose Clip: 0.176 oz (5 g) |
