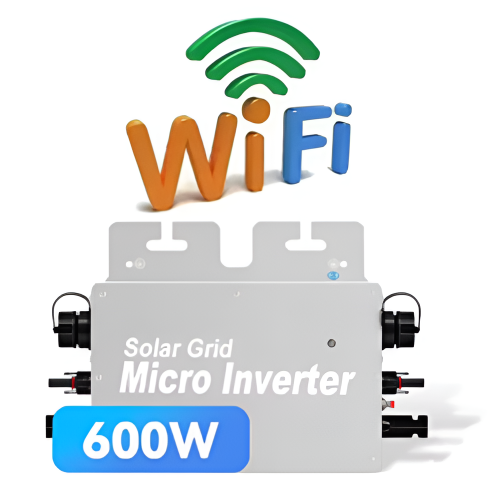

Technical Specifications
| Recommended Solar Panel Input Power (W) | 2 200 to 300 W |
| Number Of DC Input Connections (groups) | 2 MC 4 |
| Max DC Input Voltage | 52 V |
| Operating Voltage Range | 20 to 50 V |
| Start Up Voltage | 18 V |
| MPPT Tracking Range | 22 to 48 V |
| MPPT Tracking Accuracy | Over 99.5 % |
| Max DC Input Current | 2 12 A |
| Rated Power Output | 550 W |
| Max Output Power | 600W |
| Rated Output Voltage | 120 V |
| Output Voltage Range | 90 to 160 V |
| Rated AC Current | 5 A at 120 V
2.6 A at 230 V |
| Rated Output Frequency | 50 Hz |
| Output Frequency Range | 47.5 to 50.5 Hz |
| THD | Less than 5 % |
| Power Factor | Over 0.99 |
| Max Number of Branch Circuit Connections | 5 sets of 120 VAC and 10 sets of 230 VAC |
| Max Conversion Efficiency | 95 % |
| CEC Efficiency | 92 % |
| Night Losses | Less than 80 mW |
| Protection Function | Under and over voltages and over and under frequency and anti islanding and over current and overload and over temperature protection |
| Protection Class | IP 65 |
| Working Temperature | – 40 °F to 149 °F (- 40 °C to 65 °C) |
| Weight | 6.61 lb (3 kg) |
| Indicator Lights Quantity | 1 working status LED light and 1 WIFI signal led light |
| Communication Connection Mode | WIFI or 2.4 G |
| Cooling Method | Natural cooling (no fan) |
| Working Environment | Indoor and outdoor |
| Size | 13.78 in x 9.84 in x 3.94 in (35 cm x 25 cm x 10 cm) |
