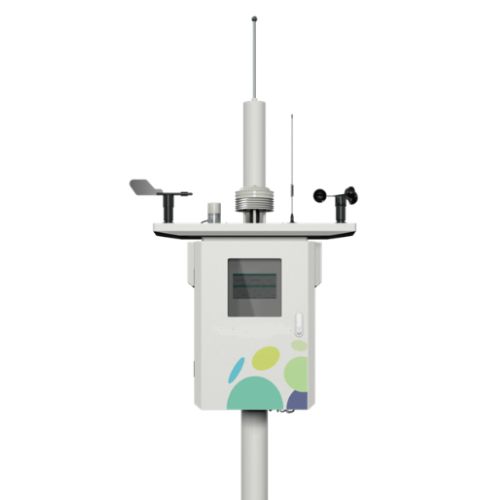

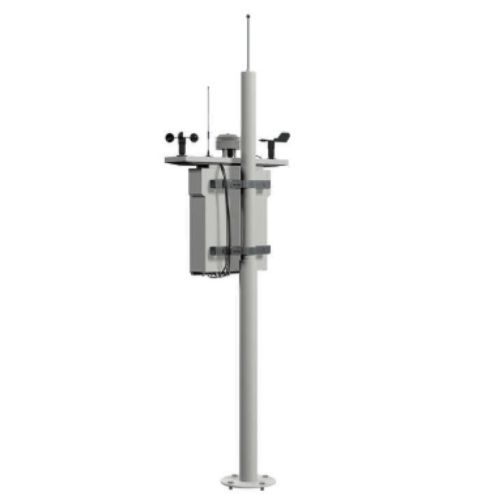

Smart Environmental Air Quality Monitoring and Analysis System – Hospitality Enviro Tech

Overview

Hospitality Enviro Tech smart environmental air quality monitoring and analysis system is widely used in urban air quality monitoring and industrial air emission pollution monitoring. It can simultaneously measure various environmental pollution gases, particulate matter and meteorological parameters in the air. The system supports RS485 signal transmission, with data storage and export functions. Through the wireless acquisition terminal, the measurement data can be transmitted to the cloud platform in real time, and can be remotely controlled through the cloud platform. It is a new type of low-cost intelligent monitoring equipment, and it is an ideal equipment for environmental monitoring departments to monitor air quality.



Advantage

With powerful functions, support convenient and flexible customization

• 1-9 kinds of gas parameters can be monitored at the same time, and measurement modules such as particle parameters and meteorological parameters can be selected according to user needs

• Imported high-sensitivity gas sensor is adopted, with fast response, high resolution, good linearity, and the detection limit can reach ppb level

• 7-inch color touch screen display, easy to view data

• Equipped with a professional outdoor shield, it can be perfectly dust-proof and rain-proof, and can continuously monitor and work stably in high or low temperature environments

• Double flowmeter design is adopted to control the flow of positive and negative pressure gases to ensure the consistency and accuracy of monitoring data

•  It can be flexibly matched with high-temperature sampling probes, oil removal, dust removal, drying, water filtration and other filtration devices to ensure the detection accuracy and service life of the device

• It can work 7×24 hours without interruption, with functions such as real-time data upload, fault self-diagnosis and automatic restart.

• Standard equipped with storage function, which can store at least two years monitoring data

• Optional solar power supply panel to support normal work when without mains power

• Optional outdoor LED display large screen, easy to view real-time data at any time

Diverse signal output

• Standard output RS485 signal, a set of relay signal.

• Optional adapter card and PC software, real-time viewing of concentration and historical data on the computer.

• Optional 4G DTU wireless module, real-time upload gas concentration value to the ecological environmental protection bureau, departmental server.

• Optional camera to realize real-time, remote and automatic monitoring of dust concentration and on-site video and image collection

• Optional LORA wireless module to achieve 3.5 km wireless communication.

Simple operation and low maintenance cost

•  The entire online monitoring system can be used after being fixed and powered on. The operation is simple. It is recommended to replace the filter element regularly, and the maintenance cost is low.

•  Activated carbon tube can be selected to make the detection more stable, and it has obtained CCEP China environmental certification



Applications

• Urban air quality monitoring, short-term and long-term air quality trend analysis and evaluation;

• Grid monitoring of air quality by relevant departments of provinces, cities, counties (districts), towns (villages or sub-district offices);

• Air quality monitoring in densely populated areas such as communities, schools, and hospitals;

• Atmospheric monitoring of industrial areas, petroleum and petrochemical plants, power plants, landfill incineration stations, sewage treatment plants, storage facilities, and      underground facilities;

• Air quality monitoring of urban roads, airports, ports, railways, tunnels, and construction sites;

• Air quality monitoring in open places such as parks, woodlands, and crop research;

• Emission monitoring of particulate matter and pollution sources;

• Environmental quality assessment.



Technical Specifications

Parameter	Description
Gas parameters (can be combined freely)	Measurement parameters: ozone, sulfur dioxide, nitrogen dioxide, formaldehyde, carbon monoxide, TVOC, etc.;   Measuring range: 0-1000ppb, 0-1000ppb, 0-1000ppb, 0-5ppm, 0-20ppm, 0-5ppm;   Resolution: 1 ppb, 1 ppb, 1 ppb, 0.01ppm, 0.001ppm, 0.001ppm; Measuring principle: electrochemical, infrared, PID photo ionization and other principles   Detection accuracy: ±3%.S   Response time: ≤30S
Particle parameters (optional)	Measurement parameters: PM2.5, PM10, PM0.3, PM1.0, PM10.0, TSP, etc.   Measuring range: 0-1000ug/m3, 0-5000ug/m3;   Resolution: 1ug/m3, 1ug/m3;   Measuring principle: laser principle   Response time: ≤30S
Meteorological parameters (optional)	Measurement parameters: temperature, humidity, wind speed, wind direction, air pressure, light intensity, noise, etc.;   Measuring range: -40°C~+120°C, 0~99%RH, 0~20m/s, 8 directions, 0~120Kpa, 0~200,000 Lux, 30dB~130dB;   Resolution: 0.1℃, 1%RH, 0.1 m/s, 1 piece, 1 Kpa, 1Lux, 1dB;  Measuring principle: thermocouple, mechanical and other principles
Sampling method	Pump suction
Flow rate	0.5L/min (gas); 1.8L/min (particles/dust)
Monitoring mode	Continuous automatic real-time monitoring
Operation	24 hours continuous work
Display	7-inch color touch screen
Display features	Adaptive display channel number, automatic page turning
Communication interfaces	RS485, relay, 4G DTU (optional), LORA (optional), etc
Power supply (external)	220VAC (AC), 0.1A
Power consumption	<100Ma (Max)
Power supply (internal)	24VDC
Working temperature	-10℃～55℃
Working humidity	0-95%RH, Relative humidity
Alarm	Sound and light alarm (optional)
Protection	Anti-corrosion, sun protection, anti-collision
Installation	Ceiling, wall-mounted
Dimensions	480×580×163mm (Excluding external sensors, rainproof beams, and mounting brackets)
Weight	18kg
System composition	Pre-processing system and monitoring factor analysis system
Material	Glass fiber material, PE material, different monitoring factors correspond to different materials



List of routine optional monitoring types:

Monitoring factor	Measure range	Optional range	Resolution	Principle
Carbon monoxide (CO)	0–10 ppm	0–10/20/50 ppm	0.001 ppm	Electrochemical
Sulfur dioxide (SO₂)	0–1000 ppb	0–0.5/1/5 ppb	1 ppb	Electrochemical
Nitrogen dioxide (NO₂)	0–1000 ppb	0–0.5/1/5 ppb	1 ppb	Electrochemical
Ozone (O₃)	0–1000 ppb	0–0.5/1/5 ppb	1 ppb	Electrochemical
TVOC	0–5 ppm	0–1/3/10 ppm	0.001 ppm	PID
Formaldehyde (CH₂O)	0–5 ppm	0–10/20/50 ppm	0.01 ppm	Electrochemical
Oxygen (O₂)	0–30% VOL	0–25% VOL	0.01% VOL	Electrochemical
Carbon dioxide (CO₂)	0–2000 ppm	0–5000/10000 ppm	1 ppm	IR
Hydrogen sulfide (H₂S)	0–5 ppm	0–10/20/50/100 ppm	0.001/0.01 ppm	Electrochemical
Ammonia (NH₃)	0–10 ppm	0–20/50/100 ppm	0.001 ppm	Electrochemical
Odor	0–999 (ou)	0–100 (ou)	0.01/0.1 (ou)	Semi-conduct
Particulates PM2.5	0–1000 µg/m³	0–5000 µg/m³	1 µg/m³	Laser
Particulates PM10	0–1000 µg/m³	0–5000 µg/m³	1 µg/m³	Laser
Temperature	-40℃ ~ +120℃	—	0.1℃	Thermocouple
Humidity	0–99% RH	—	1% RH	Thermocouple
Wind speed	0 ~ 20 m/s	—	0.1 m/s	Mechanical
Wind direction	8 directions	—	1 direction	Mechanical
Air pressure	0 ~ 120 KPa	—	1 KPa	—
Light intensity	0 ~ 200,000 Lux	—	1 Lux	—
Noise	30 dB ~ 130 dB	—	1 dB	—
