Overview

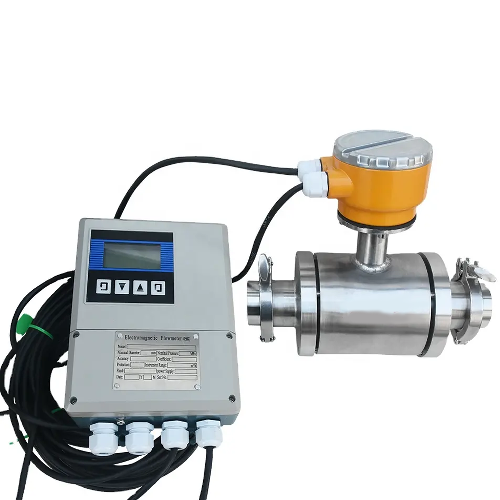

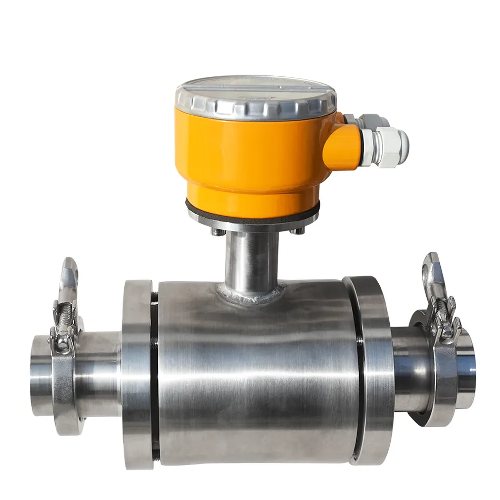

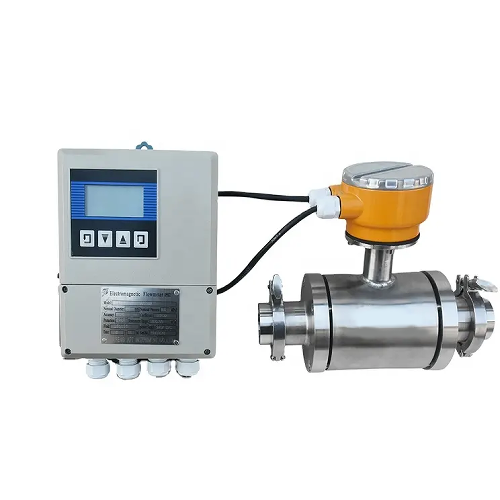

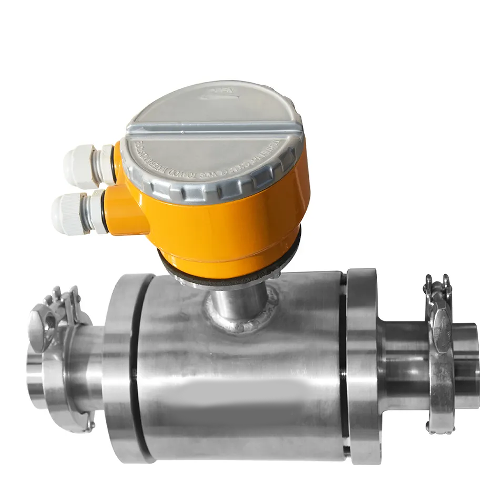

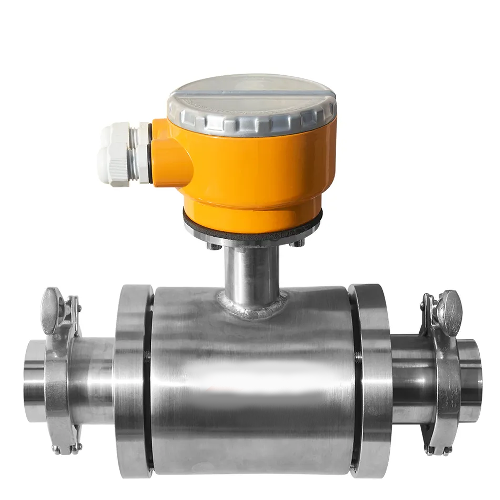

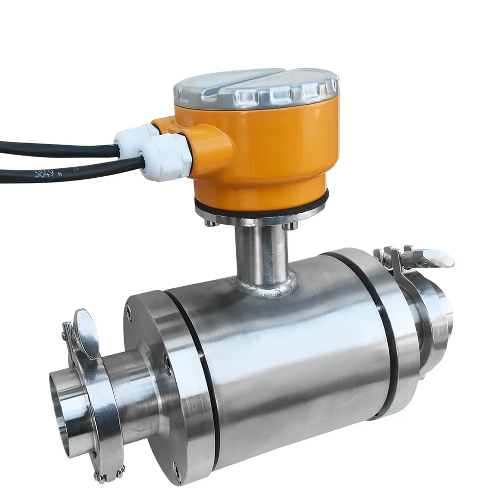

Hospitality Enviro Tech Smart Electromagnetic Flow Meter of intelligent submersible flow meter is a high-performance, high-reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine and other industries.
Features
- LCD display 3 units for cutover
- RS232 interface for data output function
- 477 Data Storage Function
- Free software for connecting force gauge with computer
- It can display Graphs and test data
- Portable Box for easy carrying
Technical Specifications
| Main Power | AC 220 V 50 Hz or DC 24 V |
| Power Consumption | <15 W (And set with sensor supporting power consumption) |
| Display And Push Buttons | The big screen LCD display with back lighting can display the instantaneous flow, total flow and percentage of flow as well as alarm display, four thin-film touch nubs, which is used to data set. |
| Accumulator | Forward total quantity, reverse total quantity |
| Analog Output | Bi direction with two ways, Isolation 0 mA to 10 mA or 4 mA to 20 mALoad resistor: 0 mA to 10 mA; 0 KΩ to 1.5 KΩ; 4 mA to 20 mA; 0 Ω to 750 Ω |
| Frequency Output | Forward and reverse flow output with frequency range set between 1 Hz to 5000 Hz. The external voltage must be lower than 35 V and the max output and the max output current must be 50 mA when the transistor is turned on |
| Alarm Output | Two outputs from the collectors of photoelectric isolate transistors are for alarm signals. The external voltage must be lower than 35 V and the max output current is 250 mA when the transistor is turned on. Alarm status: Activates when the measured pipes are empty, the excitation circuits are broken, or the volume of flow rate exceeds the value designed limits. |
| Pulse Output | For pulse output in forward and reverse flow measurement, the upper frequency of pulse output can be up to 5000 CP/S relevant value of pulse is from 0.0001 M3/P to 1.0 M3/P. The width of the pulse can be set to 20ms or squired wave automatically. The collector of the transistor with photoelectric is open-circuited. The external voltage must be lower than 35 V and the maximum output current is 250 mA when the transistor is turned on. |
| Accuracy | ±0.5% of the value displayed, ±0.3% or ±0.2% are selectable. |
| Damping Time Constant | Continuous variable from 0 s to 100 s (90%) can be selected by group |
| Communication | RS232, RS485 or HART Communication are selectable, with lighting resistance |
| Power Failure | An anti-failure clock is designed in the flow meter which can save the power failure records for 16 times (10 years) |
| Protection Class | IP 65 |
