Overview

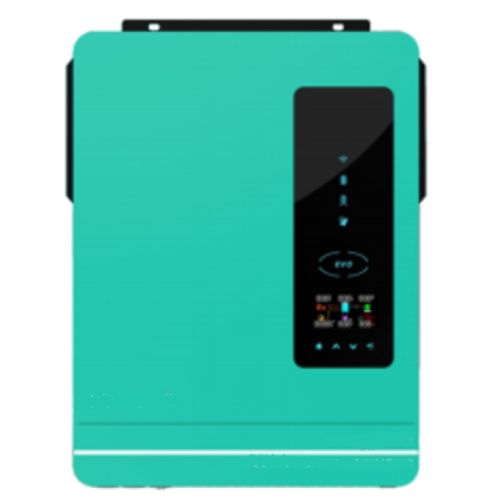

The 6200W Smart Hybrid Solar Inverter offers pure sine wave output, dual load support, and high-efficiency energy conversion for off-grid and hybrid systems. Equipped with a built-in 120A MPPT controller, it supports lithium batteries, operates with or without a battery, and provides remote monitoring via WiFi. Designed for reliability in harsh environments, it features a wide PV input range, anti-dust protection, and smart battery charging for extended lifespan.
Features
- Pure sine wave solar inverter
- Inverter running without battery
- One-key restoration to factory settings
- With function of Lithium battery automatic activation by PV
- Built-in 120A MPPT solar controller
- Max 6200W & 6500W solar input power respectively
- High PV input voltage range(60-450VDC)
- Built-in anti-dusk kit for harsh environment
- Smart battery charge design to optimize battery life
- Dual output
- WIFI available for IOS and Android
Technical Specifications
| Rated Power | 6200W |
| Maximum PV Input Power | 6500W |
| PV Input (DC) | |
| Nominal DC Voltage/Max DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
| Maximum DC Voltage | 60-450VDC |
| Number of MPPT Trackers / Max Input Current | 22A |
| Grid Output (AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 195.5~253VAC |
| Nominal Output Current | 27A |
| Power Factor | >0.99 |
| Feed-in Grid Frequency Range | 59-61 ±1Hz |
| Efficiency | |
| Maximum Conversion Efficiency | 98% |
| Two-Load Output Power | |
| Full Load | 6200W |
| Maximum Main Load | 6200W |
| Maximum Second Load (battery mode) | 2067W |
| Main Load Off Voltage | 44 VDC |
| Main Load return Voltage | 52 VDC |
| Off-grid Operation | |
| AC Input Voltage / Auto Restart Voltage | 120~140VAC / 180VAC |
| AC Input Voltage Range | 90-280 or 170-280 VAC |
| Maximum AC Input Current | 40A |
| Nominal Output Frequency | 50/60Hz |
| Max Bypass Load Power | 12400W |
| Battery Mode Output (AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Waveform | Pure Sine Wave |
| Efficiency @ DC to AC | 94% |
| Battery & Charger | |
| Nominal DC Voltage | 48VDC |
| Maximum Charging Current (Solar to AC) | 120A |
| Maximum AC Charging Current | 100A |
| General Physical | |
| Dimension (W x D x H mm) | 450 mm * 350 mm * 10mm |
| Net Weight | 10 kg |
| Interface | |
| Communication Interface | WIFI |
| Operating Environment | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -15°C ~ 60°C |
