Overview

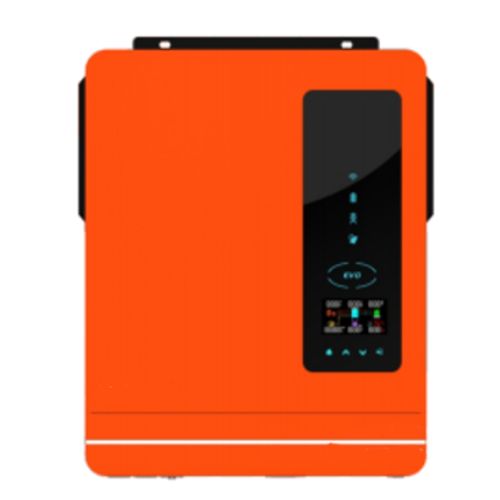

This 4200W smart hybrid solar inverter delivers pure sine wave output with dual load support and built-in 120A MPPT solar controller. It operates with or without a battery and features WiFi connectivity for remote monitoring via iOS or Android. Designed for durability in harsh environments, it ensures efficient energy use with smart battery management and high PV voltage range.
Features:
- Pure sine wave solar inverter
- Inverter running without battery
- One-key restoration to factory settings
- With function of Lithium battery automatic activation by PV
- Built-in 120A MPPT solar controller
- High PV input voltage range(60-450VDC)
- Built-in anti-dusk kit for harsh environment
- Smart battery charge design to optimize battery life
- Dual output
- WIFI available for IOS and Android
Technical Specifications
| Rated Power | 4200W |
| Maximum PV Input Power | 6200W |
| PV Input (DC) | |
| Nominal DC Voltage/Max DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 120VDC/120VDC |
| Maximum DC Voltage | 60-450VDC |
| Number of MPPT Trackers / Max Input Current | 18A |
| Grid Output (AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 195.5-253VAC |
| Nominal Output Current | 18.2A |
| Power Factor | >0.99 |
| Feed-in Grid Frequency Range | 49-51 ±1Hz |
| Efficiency | |
| Maximum Conversion Efficiency | 98% |
| Two-Load Output Power | |
| Full Load | 4200W |
| Maximum Main Load | 4200W |
| Maximum Second Load (battery mode) | 1400W |
| Main Load Off-grid Voltage | 22VDC |
| Main Load return Voltage | 26 VDC |
| Off-grid Operation | |
| AC Input Voltage / Auto Restart Voltage | 120~140VAC / 180VAC |
| AC Input Voltage Range | 90-280 or 170-280 VAC |
| Maximum AC Input Current | 30A |
| Nominal Output Frequency | 50/60Hz |
| Max Bypass Load Power | 8400W |
| Battery Mode Output (AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Waveform | Pure Sine Wave |
| Efficiency @ DC to AC | 94% |
| Battery & Charger | |
| Nominal DC Voltage | 24VDC |
| Maximum Charging Current (Solar to AC) | 120A |
| Maximum AC Charging Current | 100A |
| General Physical | |
| Dimension (W x D x H mm) | 450 mm * 350 mm * 10mm |
| Net Weight | 9 kg |
| Interface | |
| Communication Interface | WIFI |
| Operating Environment | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -15°C ~ 60°C |
