Overview

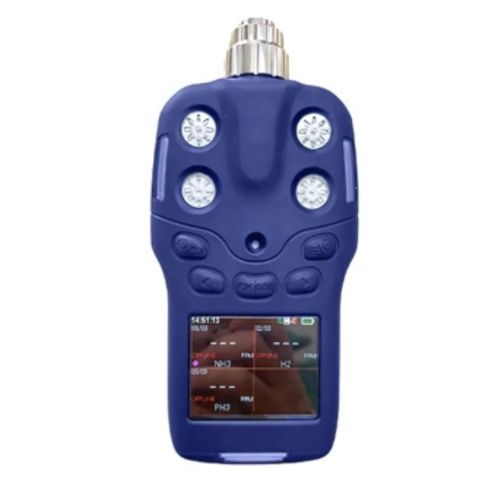

Hospitality Enviro Tech portable four-in-one gas detector is mainly used to quickly and accurately detect gas leaks or alarms for excessive gas concentrations. The fourin-one detection module contains 1-4 digital sensors, each of which is plug-andplay and intelligently identified. The main detection principles of gas detection are: electrochemistry, infrared, catalytic combustion, thermal conductivity, PID photoionization , etc. widely used in firefighting, emergency rescue, confined spaces, petroleum, chemical industry, metallurgy, refining, gas, warehousing, medicine, environmental protection, air treatment and other occasions.
Features
- Built-in pump suction measurement , turn off the pump to switch to diffusion detection mode.
- Pump blockage alarm.
- LED lighting (optional).
- Adopting intelligent digital sensor, single sensor is pluggable, intelligently identified and plug and play.
- Units can be switched freely, optional units include: umol/mol, ppm, pphm, ppb , mg/m3, ug/m3, % Vol , %LEL .
- 4-button operation, quick one-button calibration function.
- 4-inch high-definition color screen.
- Data storage , standard storage capacity is 1,000,000 records , A large-capacity memory card can be configured to store more than 10 million data pieces.
- Communication interface : TYPE-C fast charging and communication.
- Wireless transmission, optional: Bluetooth, WIFI, LORA, 4G, NB-IOT, etc., wireless interconnection between multiple instruments, SOS one-click call for help.
- Support remote maintenance and remote upgrade.
- Fall alarm.
- Data recovery function , partially or completely restore factory data.
- Maximum value, minimum value, weighted average value display, real-time curve display.
- Multiple alarm modes and alarm mode settings .
- Alarm mode: sound and light alarm, vibration alarm , voice alarm
- Alarm types: concentration alarm, underpressure alarm, fault alarm(includes sensor-deficient) , pump blockage alarm, fall alarm, SOS alarm(motion alarm).
- Alarm mode: low alarm, high alarm, interval alarm, TWA/STEL alarm
- Misoperation recognition function , concentration calibration misoperation is automatically recognized and prevented .
- Automatic zero point tracking to avoid zero point drift .
- Multi-level calibration of target points .
- Intrinsically safe circuit design , explosion-proof, vibration-proof , anti-static and anti -radiation.
- Protection grade IP68, rainproof, immersion-proof, dustproof and corrosion-resistant.
Applications
- Petroleum
- Chemical
- Pharmaceutical
- Environmental protection
- Gas distribution
- Flue gas analysis
- Air treatment
Technical Specifications
| Measuring range | Depends on site environment and user requirements |
| Resolution | 0.001ppm (0-10ppm high precision) / 0.01ppm (0～10 ppm); 0.01ppm (0～100 ppm), 0.1ppm (0～1000 ppm), 1ppm (0～ 1 000 ppm or more); 0.1%LEL; 0.1 % , 0.01 % Vol |
| Unit Display | Optional units: umol/mol, ppm, pphm, ppb , mg/m3, ug/m3, % Vol , %LEL |
| Response time | T90≤ 20 seconds ( general purpose ) |
| Working power supply | DC 7.4V |
| Display Mode | 2.4 inch color LCD |
| Service environment | -20 ℃~+ 55 ℃ , can be customized -40 ℃ ~+70℃ ;
Relative humidity: 10-95 % RH |
| Communication interface | Standard Type-C (full charge in 2 hours) |
| Data storage | Standard capacity is 1,000,000 records ; supports local viewing, deletion or data export, and storage time interval can be set arbitrarily |
| Log record | Record the calibration log, maintenance log, fault record, sensor life expiration reminder, and the next concentration calibration time reminder function |
| Explosion-proof type | Intrinsically safe ExiaⅡCT4Ga |
| levels of protection | IP68 |
| Shell material | High-strength, corrosion-resistant and fire-resistant polycarbonate and integrated TPE protective cover, antifall, wear-resistant and anti-static, effective against drops ≥ 3 meters |
| Dimensions | Maximum size 148 × 85 × 50 mm (L×W×H) shell size, excluding back clip thickness |
| Detection method | Built-in pump suction + diffusion |
| Repeatability | ≤± 2 % |
| Battery capacity | 7.4V, 2700mA h rechargeable polymer battery with overcharge, over discharge, over voltage, short circuit and overheat protection functions |
| weight | About 430g |
