Single Phase Hybrid Solar Inverter Off Grid – Hospitality Enviro Tech

Overview

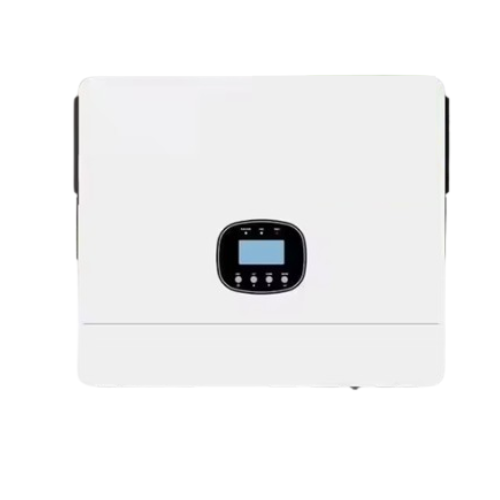

Hospitality Enviro Tech Single Phase Hybrid Solar Inverter Grid is a reliable solution for solar energy storage and off-grid applications. This device features high inverter efficiency of up to 98% and supports both 50Hz and 60Hz output frequencies, making it versatile for different regions. With a maximum PV input power of up to 15,000W and dual MPPT trackers, it ensures optimal energy conversion and performance. This product is designed to handle input voltages ranging from 60V to 480V, offering flexibility for various solar setups. Its compact design, lightweight build, and efficient energy management system make it ideal for residential and small commercial energy storage applications.

Features

• Single-phase hybrid inverter for off-grid solar energy systems
• High inverter efficiency of 98% for maximum energy utilization
• Dual MPPT channels with 1 string per channel for optimized solar input
• Wide MPPT operating voltage range: 60V to 480V
• Supports maximum PV input power from 10kW to 15kW depending on model
• Maximum DC voltage up to 550V with low starting voltage at 120V
• Output voltage: 230VAC ± 5%, frequency: 50Hz/60Hz
• Compact and durable design with natural cooling, no fans required
• Weight: 13.5 lb (6.1 kg), compact size: 460 mm x 395 mm x 132 mm (18.1 in x 15.6 in x 5.2 in)
• Built-in safety protections for voltage, current, and system stability
