Overview

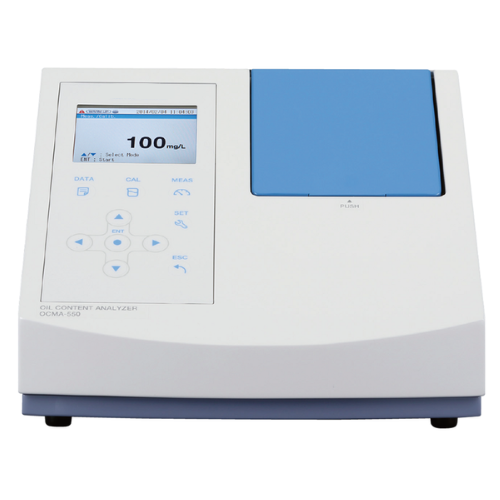

Hospitality Enviro Tech Residual oil content analyzer for solids & food with timer function measures residual oil on components and concentrations of oil adhered on solids such as soil. Measurement can be easily made only by injecting the extracted water sample into the attached cell and setting it to the equipment. This oil content analyzer features a simple design that allows the opening/closing of the door to a set of cells with just one hand. This is best for measurement of extracted samples such as evaluation of residual oil on components and measurement of oil contained in food.
Features
- Cell is easily detachable with just one hand
Simple design which allows opening/closing of door and detachment of cell with just one hand. Measurement operation becomes smooth - Timer Function
A timer function to display a measurement value in a certain amount of time is equipped. This saves the work and time required for measurement.
Technical Specifications
| Measurement method | Solvent extraction – non-dispersive infrared absorption analysis method |
| Measured objects | Substances extracted from sample water into solvent and having infrared absorption near a wavelength from 3.4 μm to 3.5 μm |
| Dropper | Made of Polyethylene, 2.5 mL |
| Code set | Power supply cable (for domestic use) |
| B heavy oil | 10 mL |
| Cell | Quartz (20 mm): 1 Piece |
| Cell Cap | Cap for cell: 1 cap |
| Measurement range | 0 mg/L to 200 mg/L |
| Measuring Syringe set (simple type) | Micro Syringe 25 uL
Measuring Syringe (for cell injection) 10 mL |
| Solvent Reclaimer | SR-305 |
| Resolution | For mg/L 0 to 99.9: 0.1, 100 to 200: 1 For mg/g, mg/kg, mg/PC 0 to 9.99: 0.01, 10.0 to 99.9: 0.1, 100 to 200: 1 Abs.: 0 to 1.000 Abs.: 0.001 Abs. |
| Repeatability | 0 mg/L to 9.9 mg/L: ±0.4 mg/L ±1 dig. 10.0 mg/L to 99.9 mg/L: ±2.0 mg/L ±1 dig. 100 mg/L to 200 mg/L: ±4 mg/L ±1 dig. * For standard liquids |
| Display method | 3.5 inches, 320×240 dots Backlight Color graphic LCD |
| Calibration method | Select each optionally zero calibration and span calibration |
| Extraction solvent | S-316 |
| Amount of extraction solvent required | Approx. 6.5 mL |
| Extraction method | Using the extraction solvent, and extracted manually outside the product |
| Ambient operating temperature | 0°C to 40°C (no condensation) |
| Power supply | 100 V to 240 V AC ±10%, 50/60 Hz |
| Power consumption | 100 V to 240 V AC, Approx. 60 VA |
| External dimensions | 195 (H) × 253 (W) × 293 (D) mm |
| Mass | Approx. 5 kg |
| External output | Output to a USB memory stick |
| Functions | · 300-item data memory (measurement history)
· Stabilized measurement value display · Self error determination · Clock · Conversion of measurement units · Compliant with ASTM D7066-4 |
