Features

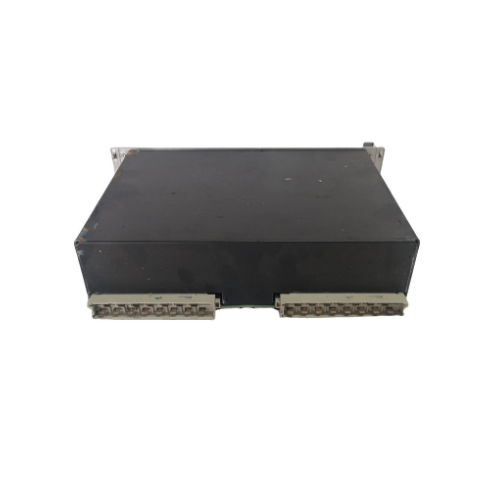

- Powers full VM600 / VM600Mk2 6U rack of modules with +5 VDC and ±12 VDC outputs.
- Supports both AC and DC input versions (including 115/230 VAC or 220 VDC; also 24 VDC / 110 VDC options).
- Protection built-in: over-voltage, short-circuit, overload protection.
- LED status indicators for +5 V, +12 V, -12 V, and input line.
- Option for redundancy: two RPS6U supplies in one rack gives backup in case one fails.
Technical Specifications
| Specification | Details |
| Type | Rack Power Supply for Vibro-Meter |
| Input Voltage Options | 115/230 VAC (auto ranging), or 220 VDC; DC versions: 24 VDC, 110 VDC |
| AC Input Voltage Range | 90-132 VAC & 180-264 VAC |
| DC-Input Voltage Range | 18-32 VDC (for 24 V version); 80-145 VDC (for 110 V version) |
| Output Voltages | +5 VDC, +12 VDC, −12 VDC |
| Output Currents | +5 V: up to 50 A; +12 V: up to ~8 A; −12 V: up to ~4 A |
| Nominal Power / Max Output Power | 330 W max output |
| Efficiency | ≈ 84-85 % typical at nominal load |
| Operating Temperature | Up to 50 °C (122 °F) before derating when under full load |
| Weight | 2.4 kg (~5.3 lb) |
| Rack Size | 6U rack height, front-mounted power supply |
