Overview

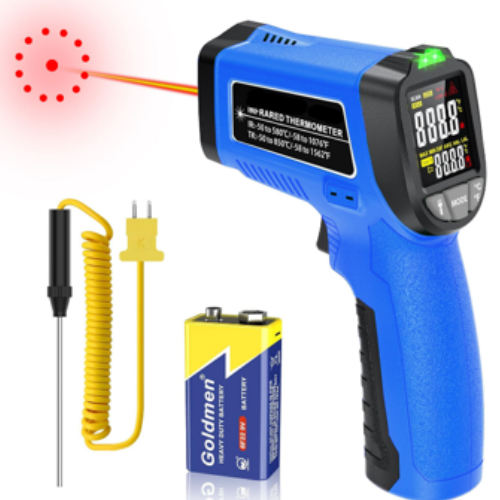

This product is a professional, hand-held meter for non-contact Infrared temperature measurement that is simple to use, highly accurate, and has a wide temperature range. It can be used to measure the surface temperature of hard-to-reach or moving objects.
Features
- Accurate and fast non-contact measurements
- 13 in-built laser pointers increase the target accuracy
- Large color LCD display with backlight
- Emissivity adjustable from 0.1~1.0
- Resolution 0.1℃ (0.1℉)
- Trigger lock
- Audible and visual alarm
- Auto power off
Technical Specifications
| Parameters | Details |
| Temp. range (IR) | -50℃ to 580℃ (-58℉ to 1076℉) |
| D:S | 13:1 |
| IR Accuracy | -50 to 0℃ / -58 to 32℉: ±3℃ / 5.4℉ |
| ＞ 0℃: ±1.5% or ±2.0 / 3.6℉ whichever is greater | |
| Emissivity | Adjustable from 0.1~1.0 |
| Resolution | 0.1℃ (0.1℉) ﹤1000 ,1℃ (1℉) ﹥1000 |
| Response Time | ﹤500ms |
| Spectral Response | 8 to 14um |
| Diode Laser | Output＜1mW,630~670nm, class 2(Ⅱ) laser |
| Range（TK） | -50℃ to 850℃ / -58℉ to 1562℉ |
| TK Accuracy | ±1.5% or ±1.5 / 2.7℉ whichever is greater |
| Resolution | 0.1℃ (0.1℉) ﹤1000 ,1℃ (1℉) ﹥1000 |
| Auto Power Off | Meter shuts off automatically after around one minute of inactivity |
| Operation Temp. | 0℃ to 50℃ / 32℉ to 122℉ |
| Storage Temp. | -20℃ to 70℃ / -4℉ to 140℉ |
| Relative Humidity | Operating: 10 to 95%RH
Storage: ＜80%RH |
| Power Supply | One 6F22 9V battery |
| Weight | 230g (Including battery) |
| Dimension (L x W x H) | 105.9 mm x 45.7 mm x 157.7 mm |
