verview

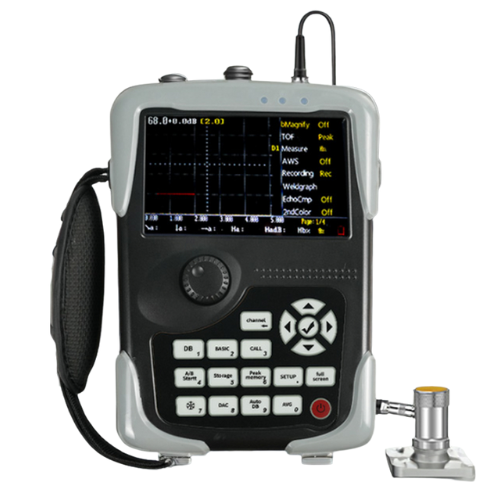

Hospitality Enviro Tech Portable Waterproof Ultrasonic Flaw Detector is designed for precise crack and flaw detection in adhesive alloy spot welding. The flaw detector features a measurement range of 0 to 25,000mm and operates with sound velocity between 1000 and 25,000. Sensitivity of the M-Ultra Series reaches 60dB or higher, enabling detection of subtle defects. The vertical linearity error is maintained at ≤2%, while the horizontal linearity error remains at ≤0.1%, ensuring high accuracy in flaw identification. The flaw detection system also supports video recording, facilitating detailed inspection reports. Packaged securely in a carton box. This waterproof ultrasonic flaw detector model is particularly suitable for nondestructive testing (NDT) applications in metals like copper, aluminum, iron, and steel welds, making it a competitive and trusted choice in the flaw detection market.
Features
- High Sensitivity (≥60dB)
- Precise Vertical and Horizontal Linearity
- Flaw Detection Video Capability
- Robust Sound Velocity Range (1000-25,000)
- Suitable for Adhesive Alloy Spot Welding Inspection
- Durable Packaging and Reliable Manufacturing
- User-friendly Interface for Field Use
Technical Specifications
| Measurement Range | approx. 0 in to 196.85 in ((0mm to 5000 mm) |
| Sound Velocity | 1000 m/s – 15000 m/s |
| Sensitivity Margin | ≥60 dB |
| Dynamic Range | ≥42 dB |
| Horizontal Linearity Error | ≤0.2% |
| Vertical Linearity Error | ≤3% |
| Far Field Resolution | ≥26 dB |
| Operating Frequency | 0 –5, 5 MHz – 10 MHz |
| Clutter Suppression | Not Available |
| Transmit Pulse | 400V Spike Pulse |
| AWS Standard Compliance | No |
