Technical Specifications

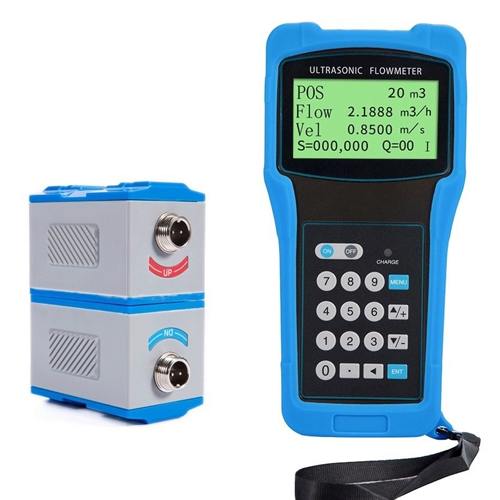

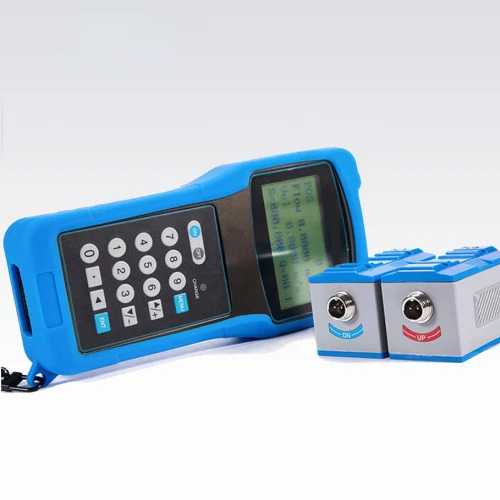

| Product name | Ultrasonic flowmeter |
| Linearity | 0.5 % |
| Repeatability | 0.2 % |
| Accuracy | ±1 % of reading at rates>0.2 mps |
| Response Time | 0 seconds to 999 seconds, user-configurable |
| Velocity | ±32 m/s |
| Pipe Size | 0.78 in to 236 in (20 mm to 6000 mm) |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4 x 16 English letters |

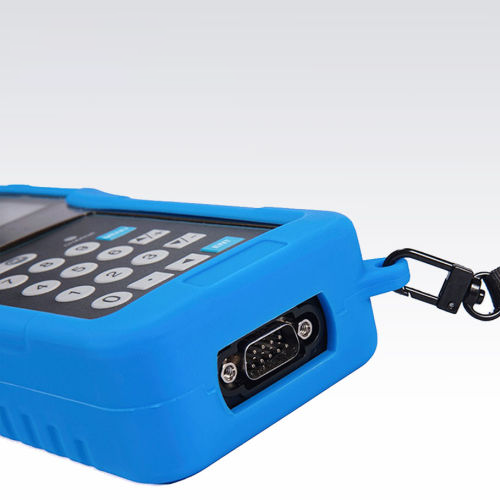

| Communication Interface | RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturerand compatible with that of the FUJI ultrasonic flow meter.
User protocols can be made on enquiry. |
| Transducer Cord Length | Standard 196.85 in x 78.7 in (5000 mm x 1998 mm), optional
393.7 in x 78.7 in (1000 mm x 1998 mm) |
| Power Supply | 3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation.100 V to 240 VACS for the charger |
| Data Logger | Built-in data logger can store over 2000 lines of data |
| Manual Totalizer | 7-digit press-key-to-go totalizer for calibration |
| Housing Material | ABS |
| Case Size | 3.93 in to 2.59 in x 0.78 in (100 mm x 66 mm x 20mm) |
| Handset Weight | 1.1 lb. (500 g) with batteries |
