Overview

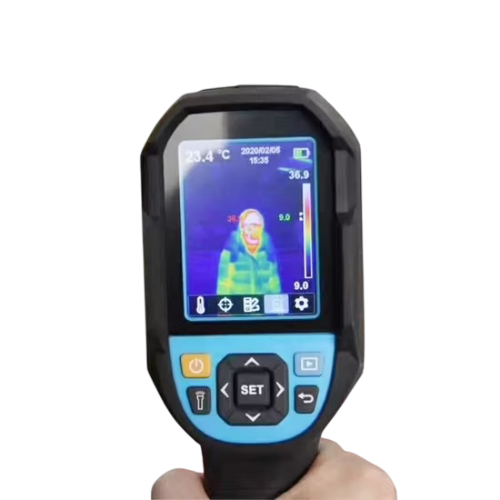

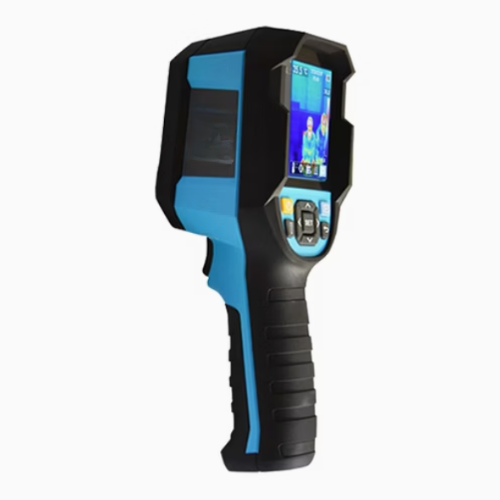

Hospitality Enviro Tech 3-Inch Portable Thermal Imager with IP66 Protection delivers fast and accurate thermal measurements with a 3-inch display and high sensitivity. It features a wide field of view, rechargeable Li-ion battery, and a compact design, making it ideal for inspections in various industrial and outdoor environments. This device supports SD card memory storage for convenient data management.
Features
- IP66-rated protection against dust and water
- 3-inch display with SD card support (32 GB)
- Field of view: 56° horizontal × 42° vertical
- Fast response time: 500 ms for 95% of readings
- Thermal sensitivity (NETD): <50 mK
- Wavelength range: 8–14 μm
- Spatial resolution (IFOV): 11 mrad
- Measuring distance: 25 cm (9.84 in)
- Powered by 3.7 V / 5000 mAh rechargeable Li-ion battery
- Operating temperature: 32–122 °F (0–50 °C)
- Compact and portable design
Technical Specifications
| IP Rating | IP66 |
| Field of View (H×V) | 56°×42° |
| Power Supply | 3.7 V / 5000 mAh Rechargeable Li-ion Battery |
| Response Time | 500 ms (95% of reading) |
| Wavelength Range | 8–14 μm |
| Spatial Resolution (IFOV) | 11 mrad |
| Measuring Distance | 9.84 in (25 cm) |
| Screen Size | 3 in |
| SD Card Memory | 32 GB |
| Thermal Sensitivity (NETD) | <50 mK |
| Operating Temperature | 32–122 °F (0–50 °C) |
| Single Package Size | 7.87 × 4.72 × 7.87 in (20 × 12 × 20 cm) |
| Single Gross Weight | 11.02 lb (5 kg) |
