Portable Thermal Imager with 220×160 IR Sensor and 3.2 Display Hospitality Enviro Tech

Portable thermal imager with 220×160 IR resolution, 3.2″ TFT display, adjustable emissivity, rechargeable battery, and temperature range -4°F to 572°F.

SKU: HETIIT-451 Category:

Overview

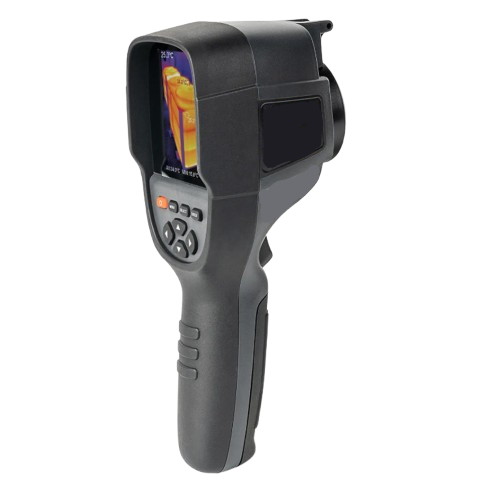

Hospitality Enviro Tech Portable Thermal Imager with 220×160 IR Sensor and 3.2″ Display provides reliable, high-resolution temperature detection for industrial and professional applications. It features a 220×160 infrared sensor paired with a 300,000-pixel visible camera, offering a temperature range of -4 °F to 572 °F. This device includes a 3.2-inch TFT display (320×240), adjustable emissivity (0.01–1.00), and fast 9 Hz frame rate with fixed focus for clear thermal imaging. Center point and hot/cold spot tracking modes enhance measurement accuracy. Multiple color palettes and built-in 3 GB storage allow flexible analysis, while the rechargeable 18650 lithium battery provides 2–3 hours of operation. Its compact, lightweight design ensures ease of handheld use.



Features

  • High-resolution 220×160 infrared sensor with 300,000-pixel visible camera
  • Wide temperature range from -4 °F to 572 °F for versatile use
  • 3.2-inch full-angle TFT display with 320×240 resolution
  • Adjustable emissivity from 0.01 to 1.00 for accurate readings on different surfaces
  • Fast thermal imaging frame rate of 9 Hz and fixed focus for clear images
  • Supports center point and hot/cold spot temperature tracking modes
  • Multiple color palettes including rainbow, iron oxide red, and black & white
  • Built-in 3GB storage with JPG image format and offline PC analysis support
  • Rechargeable 18650 lithium battery offering 2-3 hours of operation
  • Compact and lightweight design for easy handheld use



Technical Specifications

Infrared Resolution 220 × 160 pixels
Field Angle 35° × 26°
Visible Image Resolution 300,000 pixels
Thermal Imaging Frame Rate 9 Hz
LCD Resolution 320 × 240
Infrared Response Band 8 to 14 μm
Shortest Focus Length 5.91 in (0.15 m)
Lens Focal Length 0.16 n (4.0 mm)
Measurement Accuracy ±3.6 °F or ±2% (±2 °C or ±2%)
Storage Image Format JPG
Display Screen 3.2″ Full Angle TFT
Display Size 3.2″, 240 × 320
Device Storage Built-in 3GB
USB Micro USB 2.0
Product Weight 13.72 oz (389 g)
Product Size (H×W×D) 3.54 × 4.13 × 8.78 in (90 × 105 × 223 mm)
Menu Language English, Chinese, Italian, German
Temperature Range -4 °F to 572 °F (-20 °C to 300 °C)
