Overview

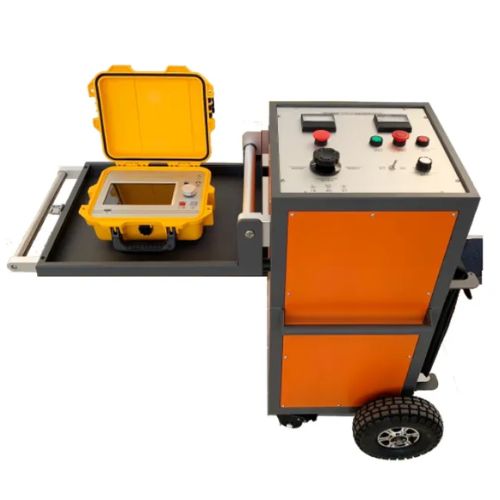

Hospitality Enviro Tech portable cable fault locator with TDR, & surge generator with a split and rugged design, we made this product to be one of the world’s most portable and powerful cable fault locators. We built in kinds of time to domain reflectometer (TDR) methods to pre to locate faults, like LV (low to voltage) TDR, Arc Reflection Method (ARM), Impulse Current Decoupling method (ICE). For multiple types of cable faults.
All parts can be used independently. You can only use our TDR part to test the length of a cable, or can only use Pin pointer to locate a fault while you already have a surge generator.
Technical Specifications
| Fault location surge generator
|
|
| Output | DC HV, LV impulse, HV impulse (single, period), arc stability impulse |
| Impact voltage | 0 kV to32 kV continuously adjustable |
| Max output current | 40mA |
| Discharge energy | 2048 J |
| Impulse period | Fixed 5s |
| Output voltage polarity | Negative polarity |
| Max output power | 500W |
| Safety | Temperature detection, automatic loop protection, double earth system, high voltage key switch |
| Operating temperature | 77°F to 122°F (25°C to 50°C) |
| Storage temperature | 86°F to 140°F (30°C to 60°C) |
| Humidity | < 95% no condensation |
| Power supply | AC 220V to 240V, 50/60Hz, 1kVA |
| Protection class | IP 43 |
| Weight | 198.42 lb (90 kg) |
| Size (L × W × H) | 2.05 in × 24.41 in × 37.01 in (56 cm × 62 cm × 94 cm) |

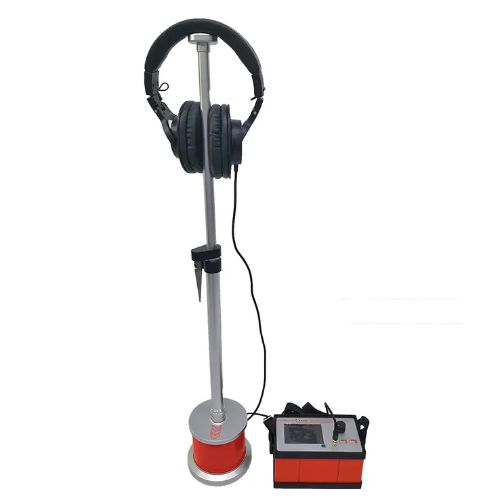

| Cable fault pin topointer | |
| Display | 3.5 in (8.89 cm), TFT color display, 480 × 320 |
| Backlight | LED |
| Dynamic range | Magnetic channel > 99 dB; Sound channel > 99 dB |
| Acoustic amplification | 99 dB, free adjustment |
| Acoustic magnetic time difference display | 0.1 ms to 60 ms, synchronous display of historical records |
| Auditory protection | Touch mute sound, sound intensity limit |
| Positioning accuracy | 0.1 m |
| Space sensing function | Compass guidance, direction indication, cable position identification |
| Filtering range | Full pass: 100 Hz to 1500 Hz; Low topass: 100 Hz to 400 Hz; Band topass: 400 Hz to 800 Hz; High topass: 800 Hz to 1500 Hz |
| Noise processing | Intelligent background noise reduction technology |
| Interface | Acoustic and magnetic pinpoint and audio pinpoint interface; 3.5mm jack |
| Power supply | DC 7.4V / 5200 mAh lithium battery |
| Continuous working time | ≥ 8h |
| IP rating | Handset IP43, Radar IP64 |
| Packing weight | 5.5 kg (including plastic case) |
| Packing size (L × W × H) | 16.54 in × 12.60 in × 5.91 in (42 cm × 32 cm × 15 cm) |
| Cable fault pre tolocator (TDR) | |
| Impulse voltage | 50V |
| Test range | 20m to 100km @ V/2 = 80m/μs |
| Wave speed adjustment | 150 to 300m/μs |
| Impulse width | 70ns to 15μs automatic adjustment |
| Resolution | 0.1m |
| Time domain accuracy | < 50 ppm |
| Sampling frequency | 400MHz |
| Output impedance | 10 to 50Ω |
| Working mode | LV TDR method; ICE method; ARM method (secondary impulse method) |
| Waveform transient comparison | Up to 4 waveforms can be compared |
| Impulse polarity | Negative polarity |
| Data import/export | Allowed |
| Cursor | With independent dual cursor control |
| Screen display | 7 in , 800 × 480 LED backlight color display |
| Screen brightness | 800 cd/m² anti toglare capacitor touch screen |
| Storage | > 10,000 test data |
| Interface | Aviation plug, USB 2.0 |
| Power consumption | 3.5W |
| Power supply | Lithium battery 7.4V, 5200mAh, rechargeable |
| Continuous working time | ≥ 5h |
| Weight | 3.0 kg |
| Size (L × W × H) | 10.63 in × 9.84 in × 4.92 in (27 cm × 25 cm × 12.5 cm) |
