Overview

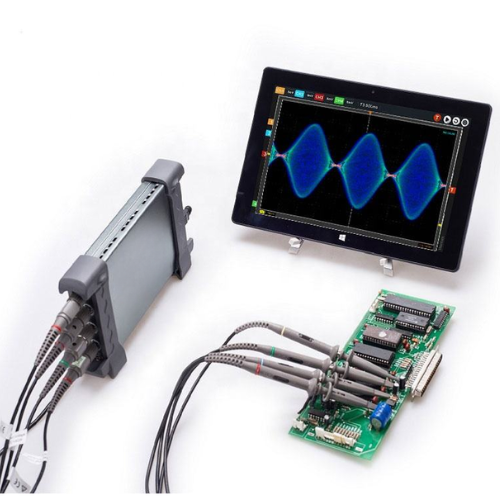

Hospitality Enviro Tech’s portable 2-channel 20 MHz USB PC oscilloscope is a compact, reliable, and versatile solution for engineers, technicians, and students who require efficient signal testing and waveform analysis. Designed with robust anodized aluminum housing, this oscilloscope not only offers durability but also provides excellent heat resistance and wear protection. Its plug-and-play USB 2.0 interface eliminates the need for an external power source, making it highly suitable for fieldwork, product line maintenance, and business travel.
Features
- Compact and lightweight design for portability
- Sturdy anodized aluminum housing with enhanced durability
- Plug-and-play USB interface for easy setup
- Suitable for notebooks and field applications
- Multiple waveform math and analysis functions
- Supports saving results in various formats
- Allows multi-device connection for extended channels
- Compatible with LabVIEW, VB, and VC development
- Ideal for engineers, technicians, and educational use
Technical Specifications
| Channels | 2 |
| Bandwidth | 20 MHz |
| Real-Time Sampling Rate | 250 MS/s |
| Vertical Resolution | 8-bit |
| Measurement Functions | 23 types with PASS/FAIL check |
| Math Functions | Addition, subtraction, multiplication, division, invert |
| Other Functions | Waveform average, persistence, intensity, X-Y plot |
| Storage Formats | Text, JPG, BMP, Excel, Word |
| Interface | USB 2.0 |
| Combination Interface | Standard USBXI for multi-instrument setup |
| Operating Systems | Windows 10, 8, 7, Vista, XP, NT |
| Multi-Device Support | Connects multiple DSO units for channel extension |
| Software Integration | Compatible with LabVIEW, VB, VC |
| Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions | 8.07 in × 4.72 in × 1.38 in (205 mm × 120 mm × 35 mm) |
| Weight | 0.88 lb (0.4 kg) |
