Overview

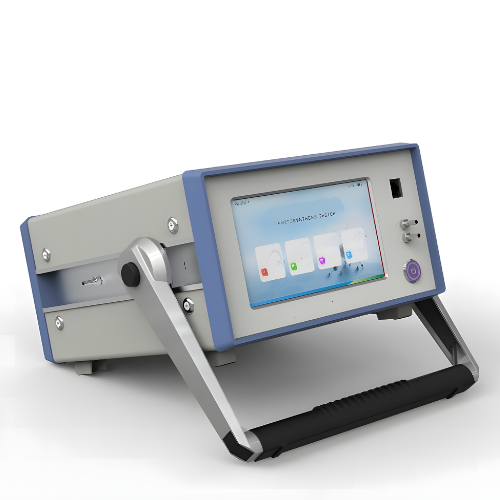

Plant Photosynthesis Tester is an experimental instrument used to detect the photosynthesis of living leaves of plants in artificial climate chambers, greenhouses, greenhouses, and fields. The content of the measurement includes air CO2 concentration, environmental temperature and humidity, leaf temperature and humidity, leaf surface temperature, atmospheric pressure, photosynthetically active radiation (PAR), leaf photosynthetic rate (Pn), stomatal conductance (Gs), leaf transpiration rate (Tr), intercellular CO2 concentration (Ci), water use efficiency (WUE), respiration rate (Rd), transpiration ratio (TR), and a total of 15 parameters. It can be used for scientific research on plant growth physiology, photosynthetic physiology, stress physiology, etc. The plant photosynthesis tester is suitable for agricultural research, teaching, horticulture, grassland, forestry, and other fields. And a wider range of fields.
Features
- Intelligence: Adopting Android operating system and high-sensitivity touch screen. Efficient human-computer interaction, real-time display of measurement process, and better operational experience
- High stability: The dual wavelength infrared carbon dioxide analyzer, equipped with temperature regulation and atmospheric pressure measurement units, effectively improves the stability and accuracy of carbon dioxide. Effectively avoiding the drawbacks of excessive fluctuations in carbon dioxide values caused by temperature changes
- Multi functional: Simultaneously measure photosynthetic rate, transpiration rate, intercellular carbon dioxide concentration, stomatal conductance, and water use efficiency, as well as indicators such as carbon dioxide concentration, relative humidity, photosynthetically active radiation, air temperature, leaf temperature, and atmospheric pressure
- Customization: Users can customize and edit experimental notes according to their measurement needs
- Data analysis: After the experiment is completed, multiple sets of data can be analyzed simultaneously for easy comparison of experimental data
- Large screen: 7-inch high-sensitivity touch screen, user-friendly interface, providing users with better data display.
- Data export: Supports copying data from USB flash drives without driver insertion and removal.
- Long battery life: It can be used continuously for 10-12 hours in the wild when fully charged.
- Convenience: Small size, light weight, portable with a suitcase, convenient for single person mobile testing
Measurement Parameters
| Parameter | Measurement Range | Unit | Resolution | Accuracy / Error |
| Air CO₂ Concentration | 0–3000 | μmol/mol (ppm) | 0.0005 | ≤ ±3% FS |
| Environmental Temperature | -20 to 80 | ℃ | 0.001 | ≤ ±0.2 ℃ |
| Environmental Humidity | 0–100 | % RH | 0.001 | ≤ ±1% RH |
| Leaf Chamber Temperature | -20 to 80 | ℃ | 0.001 | ≤ ±0.2 ℃ |
| Leaf Chamber Humidity | 0–100 | % RH | 0.001 | ≤ ±1% RH |
| Leaf Surface Temperature | -20 to 60 | ℃ | 0.001 | ≤ ±0.2 ℃ |
| Atmospheric Pressure | 30–110 | kPa | 0.01 | ≤ ±0.06 kPa |
| Photosynthetically Active Radiation (PAR) | 0–3000 | μmol/(m²·s) | 0.001 | ≤ ±5 μmol/(m²·s) |
| Photosynthetic Rate (Pn) | — | μmol/(m²·s) | 0.001 | — |
| Pore Conductance (Gs) | — | mmol H₂O/(m²·s) | 0.001 | — |
| Transpiration Rate (Tr) | — | mmol H₂O/(m²·s) | 0.001 | — |
| Intercellular CO₂ Concentration (Ci) | — | μmol/mol | 0.001 | — |
| Water Use Efficiency (WUE) | — | μmol CO₂/mol H₂O | 0.001 | — |
| Respiratory Rate (Rd) | — | μmol/(m²·s) | 0.001 | — |
| Transpiration Ratio (TR) | — | μmol H₂O/mmol CO₂ | 0.001 | — |
Instrument Parameters
| Parameter | Specification |
| Leaf Chamber Size | Standard 3.3 × 3.3 cm |
| Main Control Chip | ARM Cortex-A7, RK3288 (Quad-core, 1.88 GHz) |
| Hardware Memory | 1 GB RAM, 16 GB ROM |
| Data Interface | USB |
| Power Adapter | 100–240 V (Domestic & International use) |
| Lithium Battery Capacity | 8000 mAh |
| Charging Indicator | Red (Charging), Green (Fully Charged) |
| Host Size | 312.3 × 308.5 × 186 mm |
| Handle Size | 250 × 30 × 48 mm |
| Weight | Host: 4 kg, Handle: 0.7 kg |
