Features

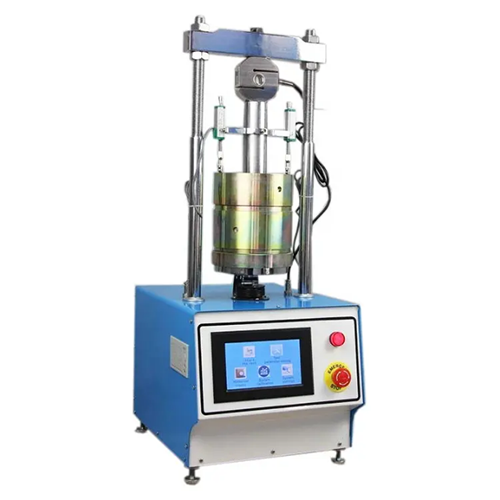

- 7-inch color touch screen display, with curve display, data saving and printing.
- Support both international and domestic standards British standard BS 1377-4, American standard ASTM D1883 and national standard T0134-1993
- The test deformation recording point and loading speed can be set arbitrarily to meet the needs of different test standards.
- It has data processing function and can automatically calculate CBR value.
- Servo motor control, with software speed feedback, and stepless adjustment of loading speed.
- Built in micro printer, which can print data stream list and test results.
- Data can be uploaded (optional).
Technical Specifications
| Penetration rod: diameter of end face | 50 mm |
| Scale value | 0.01 mm |
| Test Speed | 1mm or 1.27mm/min (can be set manually), Factory setting: 1mm/min
Fast speed: 15mm/min |
| British standard | BS 1377-4 |
| American standard | ASTM D1883 |
| National standard | T0134-1993 |
| Test Force Value | 50kN |
| Force Precision | 0.001kN |
| Penetration Rod | Diameter of end face: Φ 50mm |
| Displacement Sensor | 0 mm to 25mm
Scale value: 0.01mm |
| Linearity | 0.30% |
| Perforated Plate | 2 pieces |
| Load Plate | 4 pieces (Outer diameter: Φ 150mm
Inner diameter: Φ 52mm, 1.25kg each) |
| Test Cylinder | Inner diameter: Φ 152 mm
Height: 6.7 in (17 cm) |
| Cushion Block | Φ 151 mm, Height: 50mm (Same as test cylinder of heavy compactor) |
