This professionally engineered Oscilloscope with Scope Meter (Data Storage), comes with a large digital display for easy viewing and delivers accurate and precise measurement

SKU: HETZ700ZJ Category:

Overview

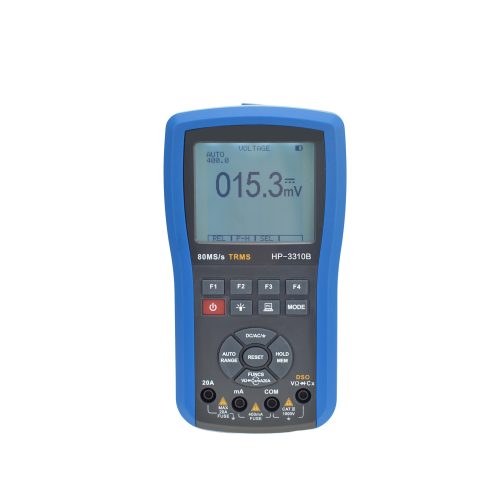

The Hospitality Enviro Tech Oscilloscope with Scope Meter (Data Storage) is built with a large digital display and hand held design for easy viewing. It is professionally engineered to deliver accurate and precise measurement. It serves as a rugged solution for industrial troubleshooting and installation applications. With minimal buttons on the front and rugged construction for durability, it delivers accurate and precise measurement.

Key Features

  • 20 M digital storage oscilloscope (DSO)
  • Combination of a 4000 count auto-range True RMS DMM
  • DMM functions include True RMS AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, dBm, diode and continuity tests
  • Full auto set up for volt/div and time/div of DSO
  • DSO Trigger mode: Auto/normal/single
  • DSO Auto measure: Vpp, Vavg, Vrms, dBm
  • DSO Cursor readout: dV, dt, 1/dt (frequency)
  • Screen hold function
  • Save and recall up to 100 waveform and data

General Specifications

Display 128 pixel graphic LCD Viewing Area 2.44 in x 2.44 in (62 mm x 62 mm)
Back Light White LED, 3 levels of brightness Input Impedance 10 MΩ
Power Inner Polymer Li-Ion Battery or AC adapter Auto Power Off 5~60minutes adjustable with disable feature
Indication of low power Charging time About 3 hrs
Battery life 12~16 hrs approx. (vary with different models) Memory 100 records (both DMM data and DSO waveform)*
Operational conditions +32 °F  to  +122 °F (0 °C  to  +50 °C);  <

75 % RH

 Storage conditions -14 °F to 140 °F (-10 °C to +60 °C)
Dimensions 3.38 in × 7.32 in × 1.25 in (86 mm × 186 mm × 32 mm) Weight 0.71 lbs (325g without the holster and other accessories)
Operational height 0~2000 m Power Charger 110 V~250 V；7.5 V/500 mA

Digital Storage Oscilloscope

Simulation bandwidth DC ~ 20 MHz (50 mV/div~ 10 V/div) Maximum real-time 100 Msps
The vertical resolution 8 bits Nonlinearity ±1 bit
Channel number 1 Coupling DC/AC/GND
Input impedance 10 MΩ Indexing Vertical ±4.8, horizontal 12.8
Vertical sensitivity

range

 50 mV/div ~ 200 V/div When range 0.20 µs/div ~ 20 s/div
Vertical amplitude precision ±(5 % + 0.1 div)

In DC/dB measurement

 Accuracy ±(0.01 % + 0.1 div)
Scanning mode Auto/normal/single
Automatic zero reference
Trigger level ± 12 div (At each step, 0.1 div) Trigger slope Rising along/down along
Trigger position adjustment ± 6 div (At each step, 0.1 div) Automatic Settings When the vertical amplitude and automatic settings
The cursor measurement function dV, dt, 1/dt (Frequency) Automatic Measurement Function Vp-p, Vavg, RMS, dBm
Automatic Measurement Accuracy ±(5 % + 0.1 div) Record Length 12.8 div

* 1-2-5 for vertical attenuation switch range

Digital Multimeter

Function

Range

Resolution

Accuracy
DC VOLTAGE 400.0 mV 0.1 mV ±(0.75 % rdg + 10 dgt)
4.000 V 1 mV
40.00 V 10 mV
400.0 V 100 mV
1000 V 1 V ±(1.5 % rdg + 10 dgt)
AC VOLTAGE 400.0 mV 0.1 mV 50 Hz~400 Hz
±(1.0 % rdg + 10 dgt)
4.000 V 1 mV
400 Hz~10 kHz (10 kHz
40.00 V 10 mV
(True RMS) ±(2.0 % rdg + 10 dgt)
400.0 V 100 mV
750 V 1 V ± (1.5 % rdg + 10 dgt) （50 Hz~400 Hz）
DC Current 40.00/400.0 mA 10 µA /100 µA ±(1.2 % rdg + 10 dgt)
4.000/20.00 A 1 mA /10 mA
AC Current 40.00/400.0 mA 10 µA /100 µA ±(1.5 % rdg + 10 dgt)
(True RMS) 50 Hz~5 kHz (5 kHz)
4.000/20.00 A 1 mA /10 mA
Resistance 400.0 Ω 0.1 Ω ±(1.0 % rdg + 5 dgt)
4.000 kΩ 1 Ω
40.00 kΩ 10 Ω
400.0 kΩ 100 Ω
4.000 MΩ 1 kΩ
40.00 MΩ 10 ksΩ ± (3.0 % rdg + 5 dgt)
Capacitance 51.20 nF 1 pF ± (2 % rdg + 10 dgt)
512.0 nF 10 pF ± (1 % rdg + 3 dgt)
5.120 μF 100 pF ± (1 % rdg + 3 dgt)
51.20 μF 1 nF ± (1.5 % rdg + 3 dgt)
100.0 μF 10 nF ± (5 % rdg + 3 dgt)
Frequency 5.12 Hz ~ 10 kHz 0.1 Hz ~ 10 Hz ± (1.0 % rdg + 5 dgt)    (The signal

amplitude3 Vp-p, AC V or 20 mA, RMS, AC A)
Duty Cycle 0.1~99.9 % (AC 1 Vp-p)
Diode Open circuit voltage 1.5 V, maximum current about 1.5 mA
Continuity Sound when lower than 30 Ω
Auto range For every function
Over range “O. L” (Over load)
Measurement rate 2.5 times/sec.
Dynamic Data Window Keep the data in the window live In hold mode.
dB(-80~+ 80dB) reference 2, 3, 8, 16, 50, 75, 93, 110, 125, 135, 150, 300, 600, 900, 1000, 1200 Ω
Fuse Φ5×20，0.5 A/250 V Φ10 × 38，20 A/500 V

Hospitality Enviro Tech Oscilloscope with Scope Meter (Data Storage)

Display Symbols

A Ampere AC ~ Alternating current
AUTO Auto ranging / trigger / setup AVG, avg Average
CURS Cursor dB Decibel
DC Direct current div Division
DUTY Duty cycle EXIT Exit current state or menu
F Farads(capacitance) Hz Hertz (frequency)
HOLD Hold the data or waveform LEVEL Trigger level
LEFT Select left cursor LOWER Select lower cursor
MANUA Manual range MAX Maximum
mA Mili Ampere mF Mili Farads (capacitance)
MIN Minimum ms Millisecond
mS Mili Siemens (conductance) mV Mili volt
NORM Normal trigger mode nF Normal Farads (capacitance)
nS Nano Siemens (conductance) P-H Peak-hold
POS (Horizontal / vertical) position RANGE Range
READ Readout saved data or waveform READY Ready for trigger
REL Relative volume RESET Reset or set the position to the centre
Restore Restore original settings RIGHT Select right cursor
RS232 RS-232 interface RUN Run peak-hold
S Siemens (conductance) SAVE Save current data or waveform
SETUP System setup Single Single trigger
STOP Stop peak-hold function TIME Time base
TRIG Trigger TRMS True RMS
UPPER Select upper cursor V Voltage
VOLT Voltage, input sensitivity µF Micro Farads (capacitance)
µs Microsecond µS Micro Siemens (conductance)
Ω Ohm ΔV Volt difference
Δt Time difference Moving up/down
Moving left/right     Battery level
Trigger slope: rising edge/ falling edge   Beep (continuity)
  AC adapter   Diode
  External clamp head measurement   The power switch and automatic shutdown before 1 minute prompt
  PC Communication   Safety warning (harmful or limit of voltage, current hint)

 The complete and optional accessories

  • Host machine
  • Low noise BiaoBi test for power adaptor
  • DC6 V 500 mA/a
  • Portable bag
  • Product user manuals

Optional accessories:

  • Extended measurement accessories (temperature/triode hFE/crystals, including temperature probe measurement 9 V battery, and operation instruction),
  • PC communication options: PC-31 suites (including USB cables, and software, adapter drive disc)
