Overview

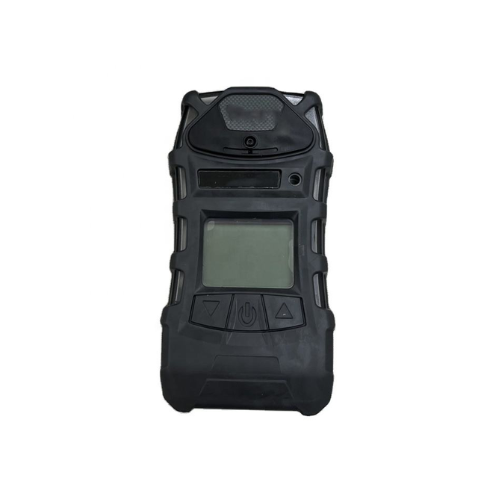

The Original 5X Gas Detector is a reliable and compact multi-gas detection device designed for industrial safety applications.
It accurately monitors LEL, O₂, CO, H₂S, and VOC gases, making it suitable for hazardous environments.
Built with durable materials, it ensures stable performance under tough working conditions.
With customizable OEM/ODM support, it is a trusted choice for professional gas monitoring needs.
Features
- 5-in-1 Gas Detection: Detects LEL, O₂, CO, H₂S, and VOC gases for maximum workplace safety.
- Industrial-grade Reliability: Designed for use in hazardous work environments.
- OEM & ODM Support: Flexible customization options for industrial applications.
- Durable Design: Built with standard-grade materials for long-term stability.
- Portable & Compact: Easy to carry for on-site safety monitoring.
- Wide Temperature Range: Operates effectively from -20℃ to +50℃ (-4℉ to 122℉).
- Digital Precision: Ensures accurate readings for early hazard prevention.
- Versatile Applications: Suitable for factories, oil & gas, mining, and chemical industries.
Technical Specifications
| Customized Support | OEM, ODM |
| Target Gases | LEL, O₂, CO, H₂S, VOC |
| Detection Principle | Electrochemical sensor, catalytic combustion, PID (for VOC) |
| Detection Method | Natural diffusion |
| Display | Digital LCD / LED backlight screen |
| Alarm Mode | Sound, light, vibration (customizable) |
| Power Supply | Rechargeable lithium-ion battery (standard, customizable) |
| Battery Capacity | ~3000mAh (typical) |
| Working Hours | 10–12 hours continuous operation (approx.) |
| Charging Time | 3–4 hours |
| Operating Temperature | -20℃ to +50℃ (-4℉ to 122℉) |
| Operating Humidity | 0–95% RH (non-condensing) |
| Explosion-proof Rating | Ex ia IIC T4 Ga (typical for industrial detectors) |
| Ingress Protection | IP65 / IP66 (dust and water-resistant, customizable) |
| Data Logging | Optional, supports event storage |
| Communication | USB / RS232 (optional, depends on OEM order) |
| Calibration Method | Manual / Automatic calibration supported |
| Size | Standard portable (approx. 130 × 70 × 30 mm) |
| Weight | ~300 g (0.66 lb) |
