Overview

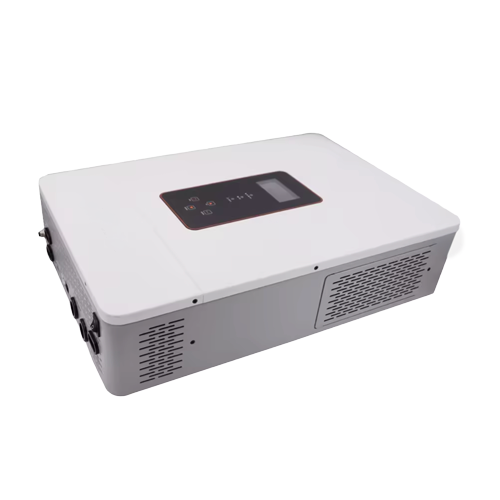

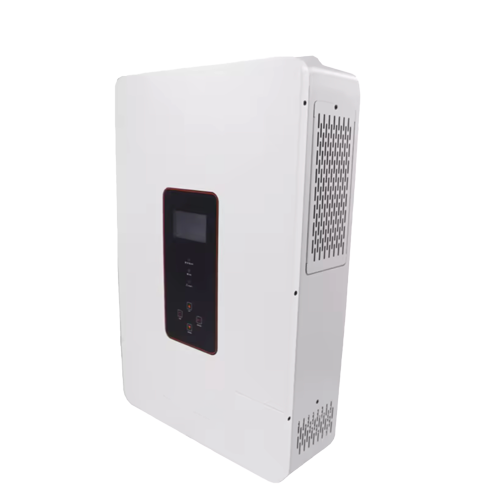

Hospitality Enviro Tech Off Grid Pure Sine Wave MPPT Solar Inverter Charger is designed to deliver efficient and reliable power conversion for residential and small commercial solar energy systems. This product supports a wide input voltage range and delivers a stable pure sine wave output, making it ideal for powering sensitive electronics and essential appliances. Equipped with advanced MPPT technology, it ensures maximum power harvesting from solar panels while offering flexible charging options. This device includes intelligent overload and short-circuit protection, ensuring safe operation even under demanding conditions. With its compact design, user-friendly LCD display, and versatile connectivity options, this product provides dependable off-grid solar energy storage and management.
Features
- High Power Output: Delivers 5000W rated capacity with 10000VA peak power.
- Pure Sine Wave: Provides stable and clean power output for sensitive electronics.
- MPPT Technology: Ensures maximum solar energy harvesting with 120V to 500Vdc tracking range.
- Flexible Input Voltage: Compatible with 208/220/230/240Vac adjustable inputs.
- Smart Battery Charging: Supports constant and float charging with up to 100A charging current.
- Multiple Interfaces: Equipped with USB, RS485, dry contact, and Type-B for easy connectivity.
- Advanced Protection: Overload, over-voltage, and short-circuit protection for system safety.
- User-Friendly LCD Display: Displays input, output, load, and operating status in real time.
- Adaptive Frequency: Auto-adjusts between 50Hz and 60Hz for global compatibility.
- Compact & Efficient: High efficiency up to 98% with compact dimensions (18.7 in x 12.4 in x 4.7 in).
Technical Specifications
| Input Sources | L+N+PE |
| Rated Input Voltage | 208 Vac to 240 Vac |
| Rated Voltage (adjustable) | 154 to 264 Vac (APP mode); 185 to 264 Vac (UPS mode) |
| Frequency | 50 Hz or 60 Hz (Auto Adaptive) |
| Rated Capacity | 5000 W |
| Output Voltage | 230 Vac (208 to 240 Vac adjustable) |
| Output Frequency | Mains mode: Follows mains; Battery mode: 50 Hz or 60 Hz ±0.3 |
| Waveform | Pure Sine Wave |
| Transfer Time (adjustable) | 10 ms (UPS mode); 20 ms (APP mode) |
| Peak Power | 10000 VA |
| Overload Ability (battery mode) | 1 min at 102% to 110% load; 10 s at 110% to 130% load; 3 s at 130% to 150% load; 0.2 s at over 150% load |
| Peak Efficiency | >94% (Battery mode rated input voltage) |
| Battery Voltage | 48 Vdc |
| Constant Charging (adjustable) | 56.4 Vdc |
| Float Charging (adjustable) | 54 Vdc |
| PV Charging Mode | MPPT |
| Max PV Input Power | 6000 W |
| MPPT Tracking Range | 120 Vdc to 500 Vdc |
| Best Voltage | 300 Vdc to 400 Vdc |
| Max PV Input Voltage | 500 Vdc |
| Max PV Charging Current | 100 A |
| Max AC Charging Current | 80 A |
| Max Charging Current | 100 A |
| Display | LCD (Running Mode, Loads, Input, Output) |
| Interfaces | USB (WIFI or GPRS support), Type-B (debugging), Dry contact (diesel generator switch), RJ45 (RS485 communication with lithium battery BMS) |
| Noise | ≤50 dB |
| Humidity | 20% to 95% (Non-condensing) |
| Storage Temperature | -5 °F to 140 °F (-15 °C to 60 °C) |
| Altitude | Up to 3281 ft (1000 m); Derating over 3281 ft (1000 m); Max 13123 ft (4000 m) |
| Weight | 20.7 lb (9.4 kg) |
| Dimensions | 18.7 in x 12.4 in x 4.7 in (475 mm x 315 mm x 120.3 mm) |
