Overview

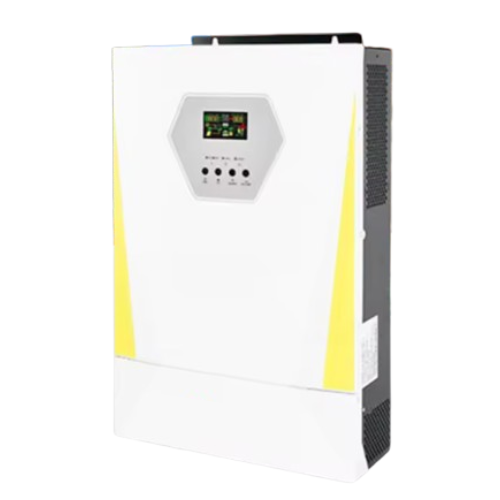

Hospitality Enviro Tech Off-Grid Hybrid Solar Inverter for PV Applications is a reliable and efficient solution designed to support residential and commercial solar systems. This device ensures stable off-grid power by converting solar energy into clean AC output, providing consistent electricity supply in areas with limited or no grid access. It features advanced MPPT technology for maximum photovoltaic utilization, ensuring higher efficiency and optimized energy performance. With intelligent charging functions, this product supports flexible and safe integration of solar power. Built with durability and user-friendly design, it offers dependable operation for a wide range of solar photovoltaic applications.
Features
- High Efficiency: Provides up to 98% inverter efficiency for maximum energy conversion.
- Flexible Power Options: Supports 5.5 kW and 11 kW power capacities.
- MPPT Solar Controller: Ensures optimal energy harvest from solar panels.
- Wide PV Voltage Range: Operates within 60 to 500 VDC or 90 to 500 VDC for greater flexibility.
- Reliable AC Output: Delivers 220 to 240 VAC with ±5% stability.
- Strong Charging Capacity: Supports up to 150A controller charging current.

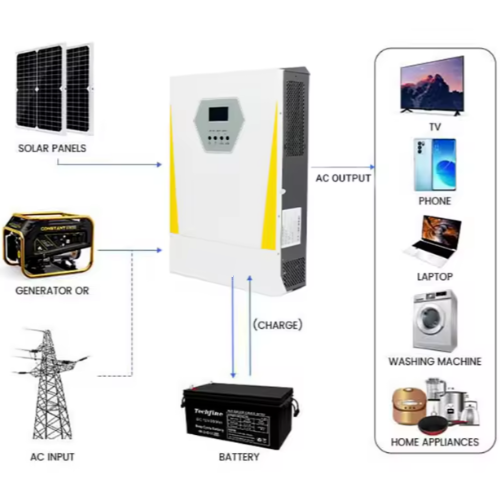

- Hybrid Operation: Compatible with both solar and AC input sources.
- Compact & Lightweight: Designed for easy installation and portability.
- Durable Build: Intelligent cooling system and robust protection for long-term use.
Technical Specifications
|
Power |
5500 W or 11000 W |
|
Photovoltaic Voltage |
60 VDC to 500 VDC or 90 VDC to 500 VDC |
|
Photovoltaic Controller |
MPPT |
|
AC Output |
220 VAC, 230 VAC, or 240 VAC ±5% |
|
Maximum DC Input Power |
8500 W or 2 W x 5500 W |
|
Controller Charging Current |
100 A or 150 A |
|
Alternating Current |
100 A or 120 A |
|
Temperature Range |
14 °F to 131 °F (-10 °C to 55 °C), >113 °F (>45 °C) derate |
|
Weight |
48.5 lb (22 kg) + 1.1 lb (0.5 kg) |
|
Size (Package Dimensions) |
22.24 in x 15.16 in x 7.68 in (565 mm x 385 mm x 195 mm) or 27.87 in x 22.44 in x 9.49 in (708 mm x 570 mm x 241 mm) |
