Overview

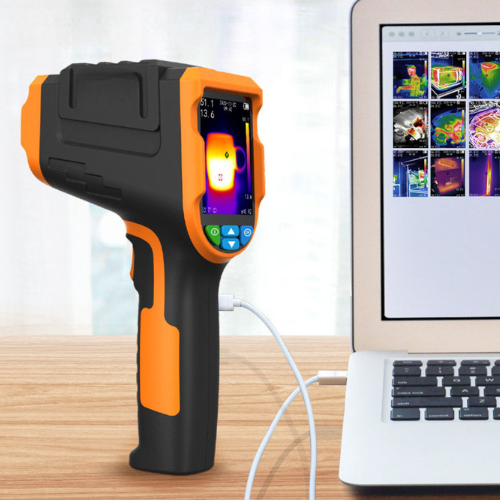

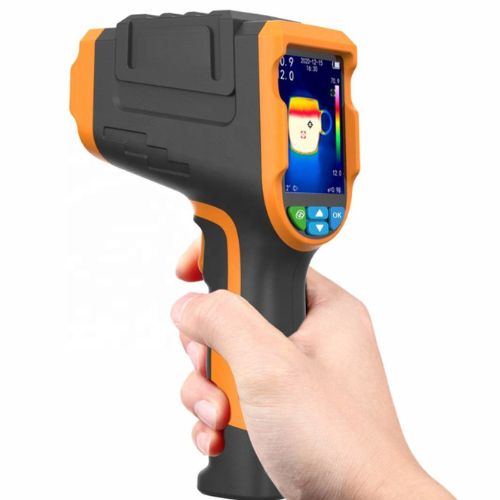

Hospitality Enviro Tech Thermal Imaging Camera combines non-contact infrared measurement with high-quality thermal imaging for industrial and maintenance applications. This device comes with built-in memory storage, ensuring convenient recording and data management. It provides quick, accurate readings, making it ideal for HVAC testing, electrical inspections, and industrial equipment monitoring. With its lightweight design and easy-to-use interface, this product is a reliable tool for professionals.
Features
- Wide Temperature Range: -10°C to 400°C (14°F to 752°F) with ±2% or ±2°C accuracy
- High Thermal Sensitivity: Detects minor temperature differences for reliable inspections
- 32×32 Pixel Thermal Resolution: With 33° Field of View for wide coverage
- Dual Imaging: Combines infrared and visible light images for detailed analysis
- Fast Response: 150 ms response time ensures real-time monitoring
- Integrated Display: 2.4-inch TFT LCD screen for clear visualization
- Ample Storage: 8GB TF card included for image and data storage
- Portable & Rechargeable: Built-in 3.7V 2600mAh battery with 1-year warranty
Technical Specifications
| Thermal Imaging Resolution | 200 × 150 |
| Angle of View | 35° × 26° |
| Temperature Range | -40°C to 330°C (-40°F to 626°F) |
| Thermal Sensitivity | 65 mK |
| Image Frame Rate | 9 Hz |
| Colour Palettes | White heat, Black heat, Rainbow1, Rainbow2, Purple, Orange, Iron Gray, High-temp contrast, High/Low temp contrast |
| Accuracy | Ambient 25°C, Distance 11.8 in |
| Emissivity | 0.1–1.0 (adjustable) |
| Spectral Response | 8–14 µm |
| Visible Resolution | 300,000 pixels (640 × 480) |
| Display Modes | Infrared / Edge Detection / Dual Light Fusion |
| Focus Mode | Fixed |
| Storage Medium | Built-in 2 GB |
| Image Format | Bitmap (BMP) |
| Display Type | 2.8 in TFT LCD |
| Screen Resolution | 240 × 320 |
| Auto Shutdown | 15s / 30s / 1 min (selectable) |
| Temperature Units | °C / °F / K |
| Operating Temperature | -10°C to 45°C |
| Memory Card | 16 GB Mini TF Card |
| Battery | 3.7V / 5000mAh |
| Drop Test | 2 m (78.7 in / 6.5 ft) |
| Shutter Interval | 15s / 30s / 1 min (selectable) |
| Product Size | 2.36 × 4.72 × 8.27 in |
