Overview

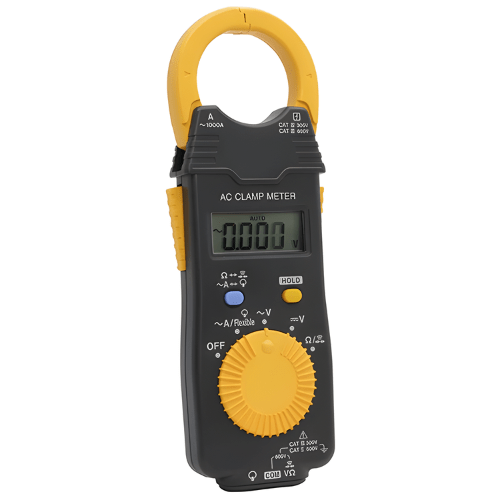

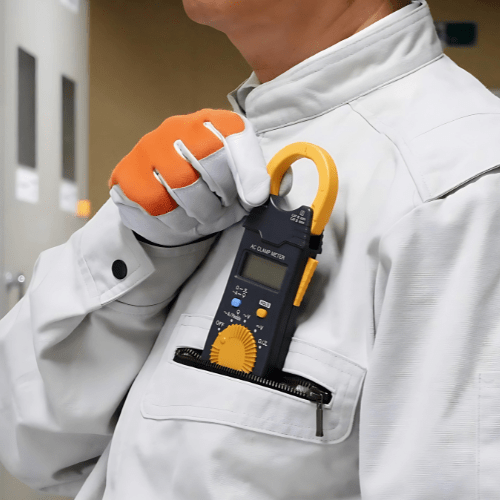

Hospitality Enviro Tech Multi-Function AC Clamp Meter with Voltage & Resistance, is multifunctional electroscope. It can provide you measure current(A), voltage(V), resistance(Ω) measurements and continuity check with one unit. This is compact body, and it has only 0.22 Ib (100 g) of lightweight and 0.62 in (16 mm) of thickness, so you can put it in your pocket. It can be used in a wide temperature range, -13 °F to 149 °F (-25 ° C to 65 ° C). The body is very tough and durable even if it falls from 3.28 ft (1 m) on concrete.
Technical Specifications
| Measurable conductor diameter | Φ33 mm (1.29 in) |
| Maximum rated voltage to ground | Clamp sensor CAT IV 300V, CAT III 600 V Voltage measurement terminal CAT III 300V, CAT II 600 V |
| Alternating current | 42.00 A or 420.00 A or 1000 A (±1.5% rdg ±5 dgt) |
| Frequency band | 50 Hz or 60 Hz |
| AC Voltage | 4.200 V to 600 V, 4 ranges (±1.8% rdg, ± 7dgt) |
| Frequency band | 45 Hz to 500 Hz |
| DC Voltage | 420.0 mV to 600 V, 5 ranges (±1.0% rdg, ± 3dgt) |
| Resistance | 420.0 Ω to 42.00 MΩ, 6 ranges (±2.0% rdg, ± 4dgt) |
| Continuity check | 420.0 Ω (±2.0% rdg, ±4 dgt), Buzzer sound threshold 50 Ω ± 40 Ω or less |
| Drop-resistant impact | 3.28 ft (1 m) on concrete |
| Dustproof or Waterproof | IP40 (Dustproof diameter 0.039 in (1.0 mm) or more wire and solids do not enter inside, no water intrusion protection) |
| Function | Data hold, Auto power save |
| Power supply | Coin-type lithium battery CR2032 x 1 |
| Continuous use time | 120 hours |
| Size | 2.24 in x 6.88 in x 0.62 in (57 mm x 175 mm x 16 mm) |
| Use or storage temperature range | -13 °F to 149 °F (-25 ℃ to 65 ℃) 80% RH or less (no condensation) |
| Weight | 0.22 Ib (100 g) |
