Overview

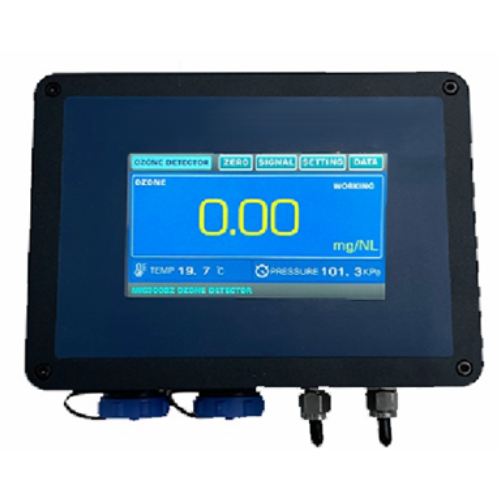

The Microprocessor-Based Ozone Detector is a dual-beam UV (254 nm) photometer for precise ozone measurement in air or oxygen. It monitors UV in measurement and reference channels, along with temperature and pressure in the cuvette, providing real-time ozone concentration on a touch screen. The system features pressure and temperature compensation, flow input for high concentrations, long-life UV light, and continuous 24-hour operation without affecting accuracy. Ozone levels can be displayed in %wt, g/Nm³, or ppmv, adjustable during operation.
Features
- Measurement features: patented technology with zero-point automatic adjustment function, dual path ultraviolet absorption principle, foreign long-life ultraviolet LED light source, continuous operation, ensuring the stability of detection concentration.
- Test method: Dual path UV absorption method, long-life light source system, high measurement accuracy.
- Measurement principle: According to the Lambert Beer law, accurate measurements are made through the principle of photometric absorption.
- Light source system: Foreign long-life ultraviolet light source system (ultraviolet LED light source with lens), with a free warranty of 2 years.
- Usage: It is recommended to install and use it indoors, equipped with waterproof aviation plugs.
- Light pool system: Separate light pool technology, leak free, high-pressure resistance, and resistance to high flow sampling gas impact.
- Intelligent compensation: Built in temperature and pressure compensation and display, with automatic.
Technical Specification
| Parameters | Details |
| Measuring range | 0-200g/Nm3 (0-300g/Nm3, 0-100g/Nm3, 0-50g/Nm3) |
| Light source life | approximately 30000-50000 hours |
| Sampling mode | positive pressure sampling |
| Display interface | 4.3-inch touch screen operation interface |
| Content interface | Ozone concentration, temperature, pressure |
| Auxiliary functions | Temperature compensation, pressure compensation |
| Display units | g/Nm3, mg/NL optional |
| Display resolution | 0.01g/Nm3 |
| Gas flow | 0.5L ± 0.2L/min |
| Input pressure | <0.1 MPa |
| Concentration error | ±0.5%FS |
| Linearity error | ±0.5%FS |
| Zero point drift | ≤±0.3%FS |
| Response time | ≤ 1 second |
| Ambient temperature | -22 to 176 °F (-30 to 80 ℃) |
| Piping interface mode | quick tightening (stainless steel) |
| Bypass sampling aperture | Φ6 (6mm*4mm) |
| Communication method | RS-485 |
| Output mode | 4-20mA (active) |
| Power supply | 24V DC |
| Dimensions | 120mm (H) × 160mm (W) × 60mm (D), |
| Note | 1mg/L = 1g/m3 = 467PPM. |
