Overview

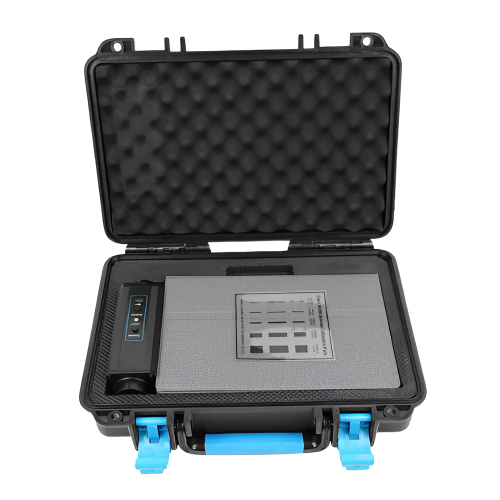

Hospitality Enviro Tech Metal Crack Detector with Wide Testing Range for Welding Inspection delivers precise flaw detection for industrial applications. This device features an ultrasonic flaw detection channel of 300 and a testing range from 0 to 10,000 mm, making it suitable for identifying cracks and defects in metal welds efficiently. It operates within a frequency range of 0.5 to 20 MHz and offers a gain control of 0 to 120, ensuring high sensitivity and accurate readings. With a dynamic range of 32 dB or more, this product provides reliable performance in various testing environments. Designed for ease of use and durability, it supports OEM, ODM, and OBM customizations to meet specific industry needs.
Features
- Wide Testing Range
- High-Frequency Range
- Large Flaw Detection Channel Capacity
- Adjustable Gain Control
- High Dynamic Range
- OEM, ODM, and OBM Customization Support
- Suitable for Welding and Metal Inspection
Technical Specification
| Type | Ultrasonic flaw detector |
| Flaw Detection Channel | 300 |
| Testing Range | 0 in to 393.7 in (0 mm to 10,000 mm) |
| Frequency Range | 0.5 MHz to 20 MHz |
| Gain | 0 to 120 |
| Dynamic Range | ≥ 32 dB |
| Measurement Accuracy | ± 0.0004 in (± 0.01 mm) |
| Data Storage | 32 GB |
| Power Supply | Li-ion rechargeable battery |
| Temperature Range | 14 °F to 122 °F (-10 °C to 50 °C) |
| Net Weight | Probe: 15.87 oz (450 g) tablet: 25.57 oz (725 g) |
| Outline Dimensions | Probe: 1.97 in x 1.97 in x 6.30 in (50 mm x 50 mm x 160 mm) Tablet: 9.65 in x 6.50 in x 0.59 in (245 mm x 165 mm x 15 mm) |
