Overview

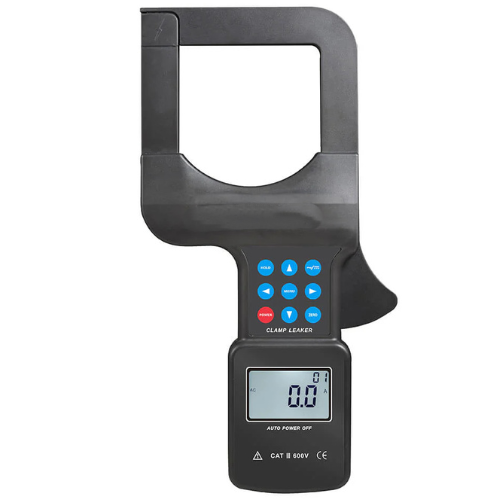

Hospitality Enviro Tech’s large caliber multi-function AC/DC clamp current meter with USB is designed for precise high-current measurement in both AC and DC applications. This device features a large 80 mm x 80 mm clamp opening that accommodates thick flat cables or steel ground wires, making it ideal for industrial and electrical testing. It offers peak hold, data storage for up to 99 groups, and a USB interface for convenient data upload to a computer for monitoring, saving, or printing. With a clear LCD display, automatic shutdown, and overflow indicators, this product ensures efficient and reliable performance for professional electricians and engineers.
Features
- Large caliber clamp meter
- Can clamp flat cable or steel flat ground cable.
- Data storage function, peak hold function.
- With USB interface, can upload the storage data to the computer via software, convenient to read, save, print, etc.
Technical Specifications
| DC Current Range | 0.0 A to 2000 A |
| AC Current Range | 0.0 A to 1000 A |
| Resolution | 0.1 A DC or AC |
| Accuracy (0.0 A to 999 A) | ± 2% rdg ± 5 dgt |
| Accuracy (1000 A to 1499 A) | ± 3% rdg ± 5 dgt |
| Accuracy (1500 A to 2000 A) | ± 4% rdg ± 5 dgt |
| Sampling Rate | 2 times per second |

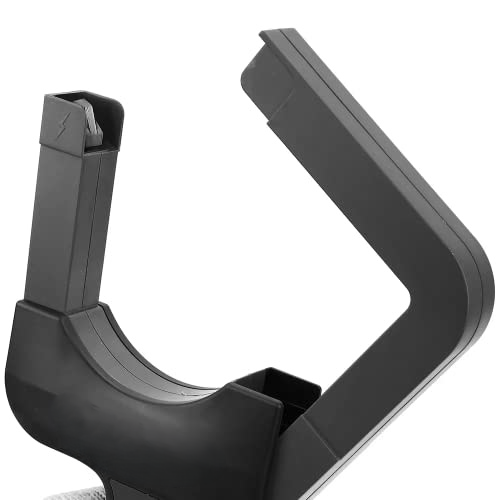

| Clamp Opening Size | 3.15 in x 3.15 in (8 cm x 8 cm) |
| Cable Compatibility | Clamps cables up to 3.78 in (9.6 cm) wide |
| LCD Size | 1.85 in x 1.12 in (4.7 cm x 2.85 cm) |
| Data Storage | 99 groups, “FULL” symbol when memory is full |
| Peak Hold | Captures and holds peak value |
| Data Hold | Displays “HOLD” symbol |
| Overflow Display | Displays “OL” when measurement exceeds range |
| Polarity Indication | Automatic in DC current mode |
| Automatic Shutdown | After 5 minutes of inactivity |
| Battery Voltage Warning | Displayed at 4.6 V |
| Power Supply | DC 6 V (4 x LR6 alkaline batteries) |
| Working Current | 20 mA |
| Line Voltage Limit | Below AC 600 V |
| USB Interface | With 4.92 ft (1.5 m) cable |
| Weight | 40.9 oz (1160 g) |
| Dimensions | 10.83 in x 5.71 in x 1.57 in (27.5 cm x 14.5 cm x 4 cm) |
