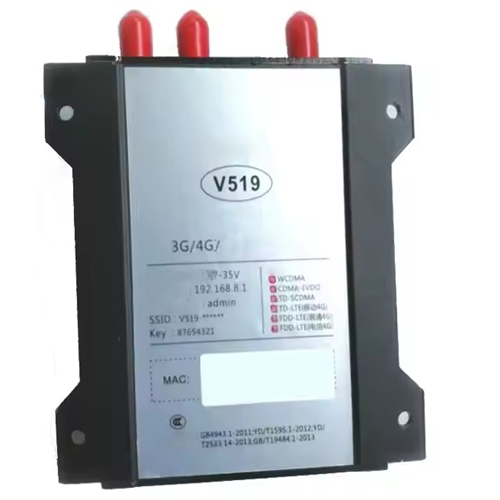

Features
- High-Performance Processor
- Flexible Connectivity
- Wide Operating Range
- Compact Design
Technical Specifications
| Size (in) | Length: 3.28 × Width: 3.27 × Height: 1.06 (±0.08) |
| Processor | High-Performance 32-Bit Processor |
| Cellular Baseband | China Full Netcom; Foreign Frequency Bands Optional |
| Wi-Fi Speed | 300 Mbps (2T2R) |
| Ethernet Port | 2 × Ethernet Ports (10 to 100 Mbps Self-Adaptive) with LINK Indicator |
| Serial Interface | 4PIN Serial Interface (default RS485) |
| Power Supply | DC 7 to 35V / 2A |
| Power Consumption | Approx. 300 mA @12V DC (4G version) |
| Antenna Interfaces | Wi-Fi × 2; Cellular × 1; GPS × 1 (optional) |
| Reset Button | Reset Button × 1 |
| Indicator Lights | 4 lights: Cellular Indicator × 1, Network × 2, System × 1 |
| SIM Card Slot | Drawer Card Slot × 1 |
| Operating Temperature | -40°F to 167°F (-40°C to 75°C) |
| Storage Temperature | -49°F to 185°F (-45°C to 85°C) |
| Humidity | 5% to 95% Non-Condensing |
| Hardware Watchdog | Supported |
