Features
- Wide frequency response range (10 Hz to 1,000 Hz).
- Strong anti-interference performance.
- High sensitivity: 20 mV/mm/s.
- Double-layer isolation design for stability.
- No directional installation required.
- Durable 304 stainless steel housing.
- Compact and lightweight (90 g).
- Suitable for industrial site monitoring.
- Shock resistant up to 2000 g.
Technical Specifications
| Specification | Details |

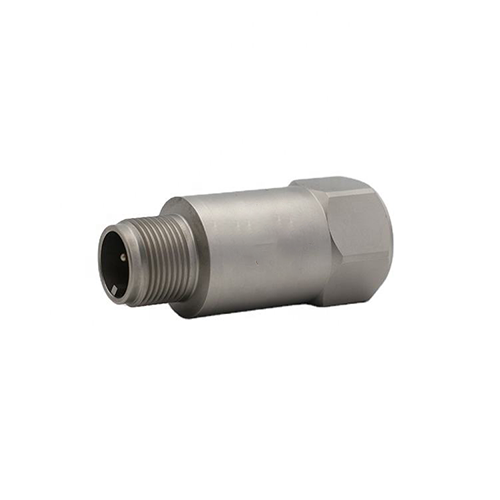

| Sensor Type | Piezoelectric vibration velocity sensor |
| Output | IEPE, Voltage type |
| Frequency Response (±1 dB) | 10 to 1,000 Hz |
| Frequency Response (±3 dB) | 4 to 1,000 Hz |
| Measuring Range | ±250 mm/s |
| Sensitivity (25 °C ±5%) | 20 mV/mm/s |
| Amplitude Non-Linearity | <2% |

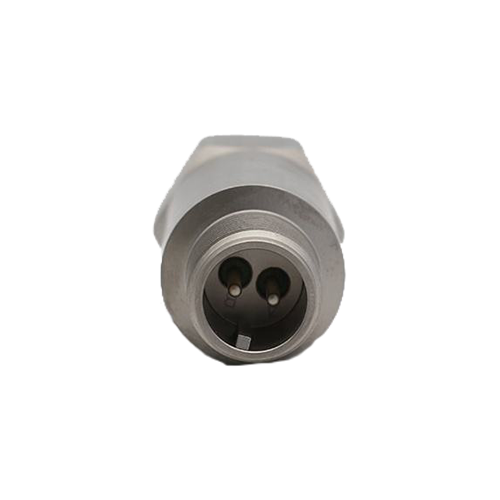

| Output Configuration | 5/8-24 two-core socket |
| Current Consumption | 2 to 10 mA |
| DC Supply Voltage | 18 to 28 VDC |
| Transverse Sensitivity Ratio | ≤5% |
| Noise (rms) | <50 μV |
| Resistance | <100 Ω |
| Reverse Voltage (Max) | +14 V |
| Shock Resistance (Peak) | 2000 g |
| Ground Insulation | ≥10^8 Ω |
| Protection Class | IP65 |
| Housing Material | 304 stainless steels |
| Mounting Type | 1/4-28 |
| Erection Bolt | 1/4-28 turn M6 |
| Connecting Cable | MIL two-core cable x 9.84 ft (3 m) |
| Operating Temperature | -40 °C to +85 °C ( -40 °F to 185 °F ) |
| Weight | 3.17 oz (90 g) |
| Size / Dimension | 0.98 in x 2.07 in (25 mm x 52.5 mm) |
