Features

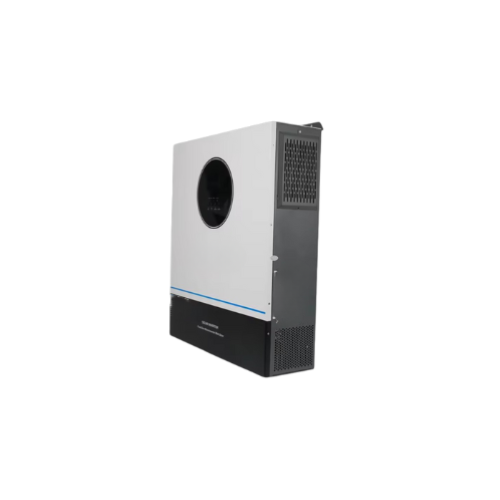

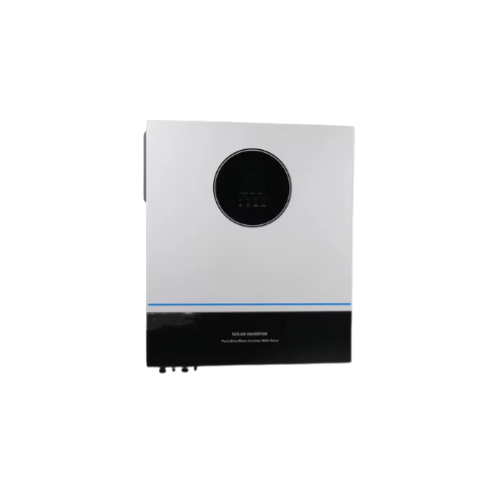

- Off-grid single-phase hybrid solar inverter
- MPPT controller with up to 98% efficiency
- Supports 12V, 24V, and 48V battery options
- Wide MPPT voltage range: 30–400VDC
- PV array power capacity: 2000W to 11,000W
- Solar charge current: 80A / 120A / 160A
- Wi-Fi, RS232, and GPRS connectivity
- Compact, lightweight, and easy to install
- TUV and CE certified for safety and quality
Technical Specifications
| Specification | Details |
| Inverter Type | Hybrid off-grid single-phase solar inverter |
| Rated Power Output | 2 kW to 11 kW |
| Battery Voltage Options | 12 V, 24 V, or 48 V |
| Maximum PV Array Power | 2000 W to 11,000 W |
| MPPT Voltage Range | 30 VDC to 400 VDC |
| Maximum Solar Charge Current | 80 A, 120 A, or 160 A |
| Conversion Efficiency | Up to 98% |
| Connectivity Options | Wi-Fi, RS232, or GPRS |
| Operating Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
| Product Weight | 12.3 lb (5.6 kg) |
| Dimensions (L x W x H) | 16.54 in x 13.78 in x 4.33 in (420 mm x 350 mm x 110 mm) |
