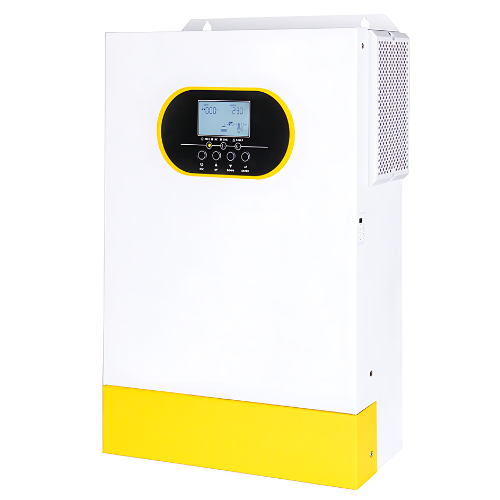

Hybrid Off-Grid 48 V 6 KW 6.2 KW 6 KVA Solar Inverter With 98% Efficiency - Hospitality Enviro Tech
Hybrid Off-Grid 48 V 6 KW 6.2 KW 6 KVA Solar Inverter With 98% Efficiency - Hospitality Enviro Tech - Image 2

Hybrid Off-Grid 48 V 6 KW 6.2 KW 6 KVA Solar Inverter With 98% Efficiency – Hospitality Enviro Tech

High-efficiency inverter with 98% peak efficiency (PV to INV) and 94% (BAT to PV). Supports 48 VDC batteries, 27A max solar input, and reliable low DC cut-off at 44 VDC.

SKU: HETSI-148 Category:

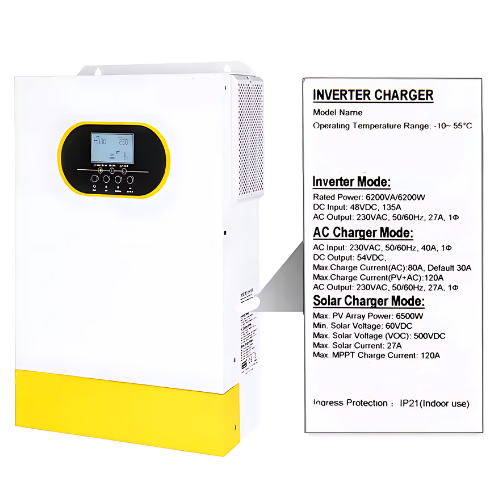

Technical Specifications

Nominal Voltage 220 VAC to 230 VAC ± 5%
Surge Power 2 x rated power for 5 seconds
Frequency 50 Hz or 60 Hz
Waveform Pure Sine Wave
Transfer Time 10ms typical (UPS)
20ms typical (Appliances)
Peak Efficiency (pv to inv) 98 %
Peak Efficiency (batt to pv) 94 %
Battery Voltage 48 VDC
Cold Start Voltage 46 VDC
Low DC Cut-Off Voltage 44 VDC
Maximum Solar Input Current 27 A
Maximum Solar Charge Current 120 A
Maximum AC Charge Current 80 A
Maximum Charge Current 120 A
Size 17.2 in x 11.6 in x 4.13 in (43.8 cm x 29.5 cm x 10.5 cm)
Net Weight 19.18 lbs. (8700 g)
