Overview

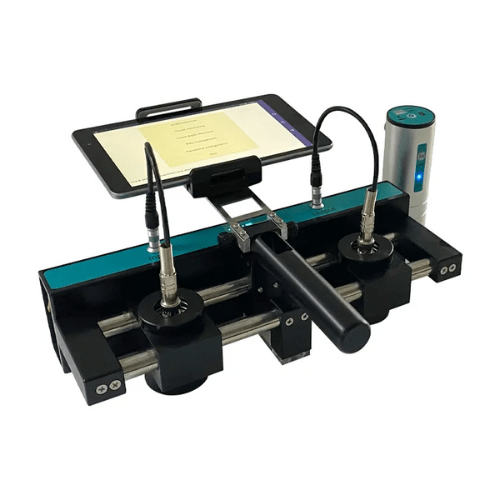

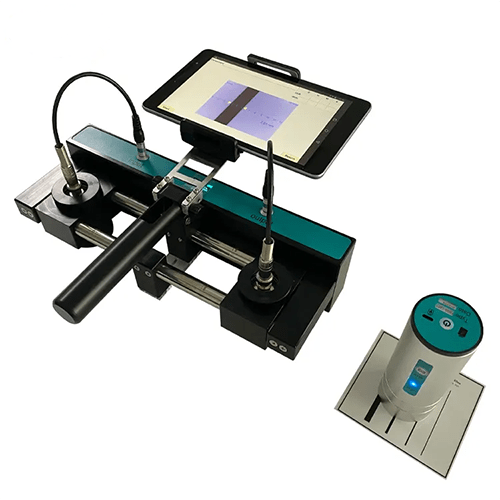

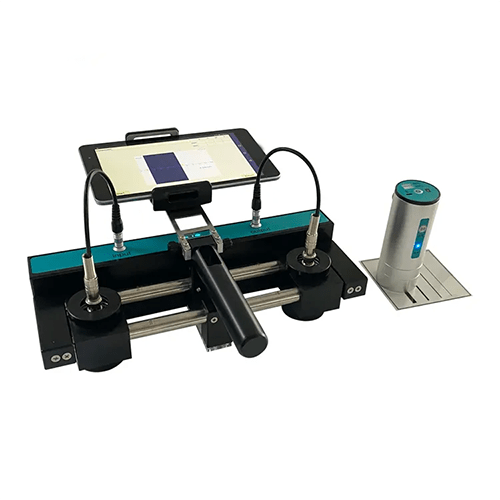

Hospitality Enviro Tech Wireless Integrated Crack Detector is used for automatic measurement of crack width and depth on structure surface, automatic interpretation, and data storage.
Features
- Wireless Cloud Transmission Upgrade
- Original wireless camera probe
- Snap button operation is convenient
- The host adopts an Android system tablet computer
- Chinese full-touch operation
- Intelligent interpretation of oblique cracks
- Images can be zoomed in and out
- The interface displays the scale
- Bracket-Free Sounding Option
- Saving time and effort
- Tablet computer
- TF card storage
- Large capacity without limit
- Copying data is convenient and fast
- On-Board Data Analysis and Reporting
Technical Specifications
| Master Control Unit | 8-in tablet Android operating system |
| Wireless Width Gauge Unit Test Range And Accuracy | 0 in or 0.39 in or 0.00 in (0 mm or 10 mm or 0.01 mm) |
| Wireless Width Gauge Unit Magnification | Digital 60 times |
| Wireless Width Gauge Unit Operational Mode | Touch screen + shortcut keys |
| Wireless Width Gauge Unit Connection Mode | Wifi connection |
| Wireless Width Gauge Unit Data Transmission Mode | Wireless cloud transmission (optional) |
| Wireless Width Gauge Unit Measuring Method | Automatic/ manual |
| Working Hours | More than 10 hours |
| Test Scope | 0.19 in to 19.58 in (5 mm to 500 mm) |
| Wireless Depth Gauge Unit Measurement Accuracy | Less than 0.19 in (5 mm) or 2% to 10% of the actual depth |
| Wireless Depth Gauge Unit Operational Mode | Touch screen + probe automatic trigger |
| Wireless Depth Gauge Unit Connection Mode | Bluetooth connection |
| Wireless Depth Gauge Unit Data Transmission Mode | Wireless cloud transport(options) |
| Wireless Depth Gauge Unit Measuring Method | Fast/standard measurement |
| Application | Project site |
| Basic Principle | Ultrasonic |
| MOQ | 1 Set |
| Wireless Width Gauge Unit Power Wireless Width Gauge Unit Supply Mode | Built-in lithium battery |
| Wireless Depth Gauge Unit Power Supply Mode | Built-in lithium battery |
| Wireless Depth Gauge Unit Working Hours | More than 10 hours |
| Wireless Width Gauge Unit Working Environment | -14 °F to 104 °F (-10 ℃ to 40℃) |
| Wireless Width Gauge Unit Working Environment RH | 90% RH |
| Dimensions | 16.53 in x 5.51 in x 13.14 in (420 mm 140 mm x 335 mm) |
| Weight | 17.85 lb. (8.1 kg) |
