Overview

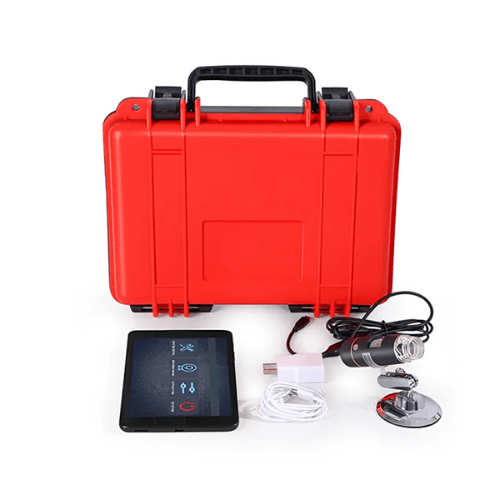

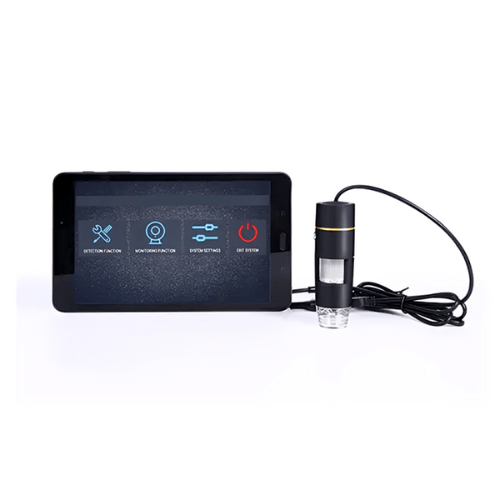

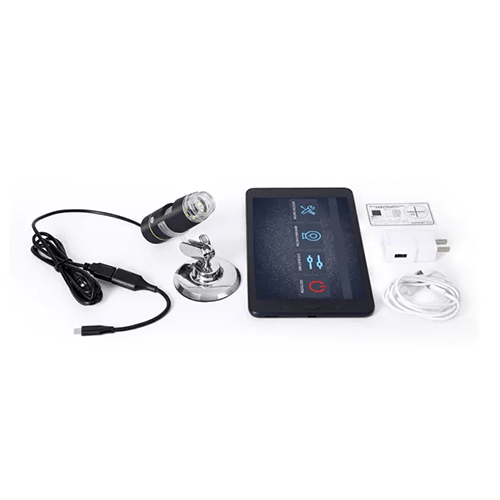

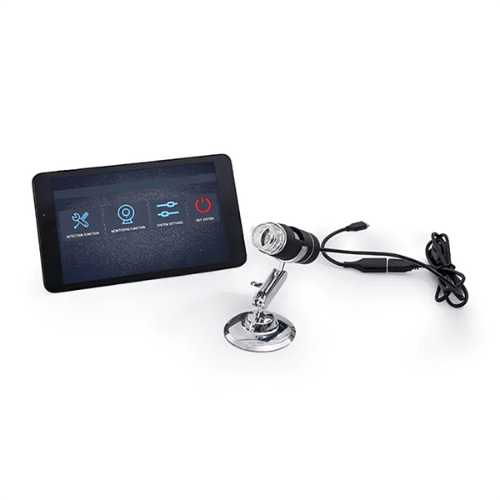

Hospitality Enviro Tech Wireless Digital Surface Crack Detector is a USB flat-panel crack-width monitor. It can conveniently carry out real-time automatic detection of crack width on the surface of different materials and structures, real-time observation of crack cracking process, and long-time real-time automatic monitoring, to realize real-time unattended monitoring and automatic preservation of crack changes. In addition to automatic interpretation, It can also interpret the crack width artificially. After field testing and saving the image data of cracks, the cursor can be moved artificially to define the crack boundary at the viewing interface. The scale is displayed on the screen, showing the crack width value. The crack image and scale can be enlarged and reduced appropriately.
Technical Specifications
| Lens Pixel | 1000 – fold High Definition Microscope |
| Measurement Range | 0.00 ft to 0.09 ft (0.01 cm to 3 cm) |
| Interpretation Accuracy | 0.00 in (0.01 mm) |
| Detection Range | 0.00 in to 0.19 in (0.01 mm to 5 mm) with a camera bracket up to 0.39 in (10 mm) |
| Photo Resolution | 640 x 480 |
