Name: Hospitality Enviro Tech Wired Sensor Clamp Flow Meter - Hospitality Enviro Tech
SKU: HETWCM-105
Availability: InStock

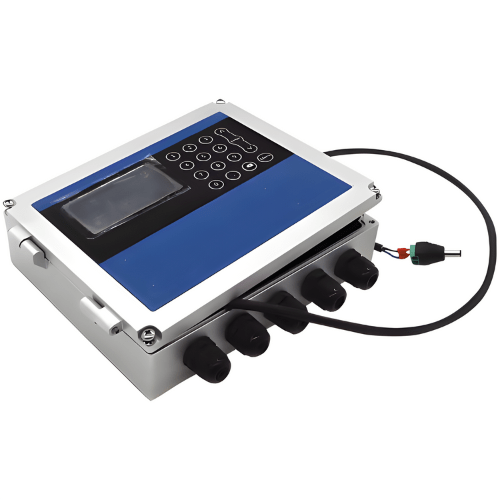

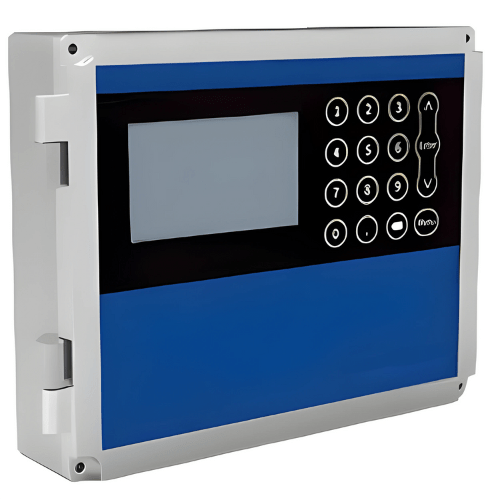

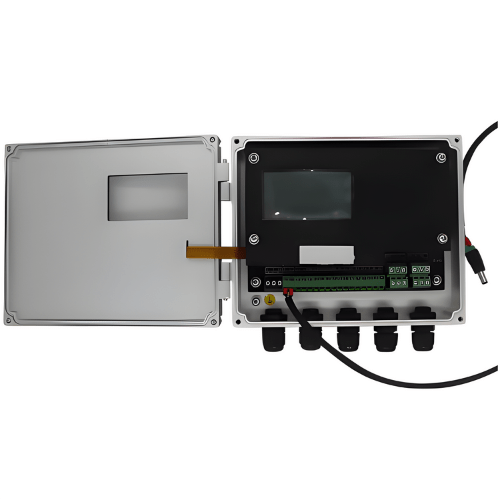

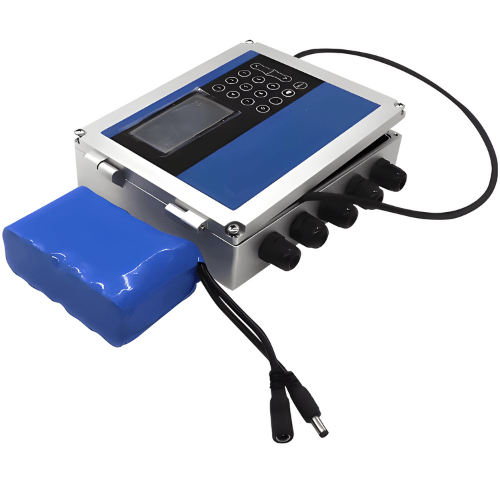

Hospitality Enviro Tech Wired Sensor Clamp Flow Meter

This Wired Sensor Clamp Flow Meter has an accuracy of ± 1 %, linearity of ± 1 %, relative humidity of up to 99 % and repetition accuracy of 0.2 %.

Features

Technical Specifications

Measuring range	± 0.03 m per second to ± 5 m per second
Accuracy	± 1 %
Repetition accuracy	0.2 %
Linearity	± 1 %
Pipe diameter	0.9 in to 55.1 in (25 mm to 1400 mm)
Medium	Water
Output signal	Analog output 4 mA to 20 mA, maximum load 750 Ω, pulse output 0 K KHz to 10 K KHz
Communication function	RS 232 or RS 485 MODBUS
Power supply	10 V to 36 V DC or 1 A, 90 V to 245 V AC
Temperature	Converter -4 °F to 140 °F (-20 °C to +60 °C), sensor -40 °F to 176 °F (-40 °C to 80 °C)
Humidity	Up to 99 % RH, non-condensing
Converter	Aluminum, IP 56
