Overview

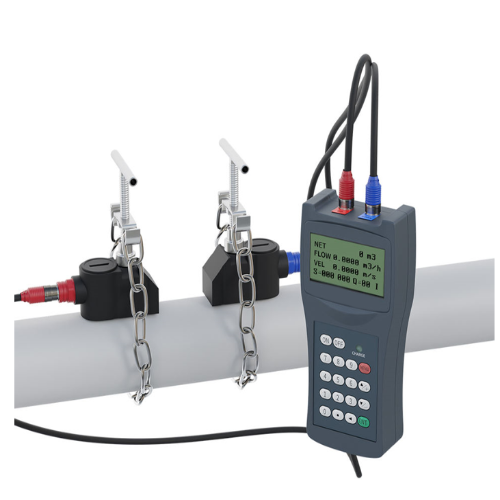

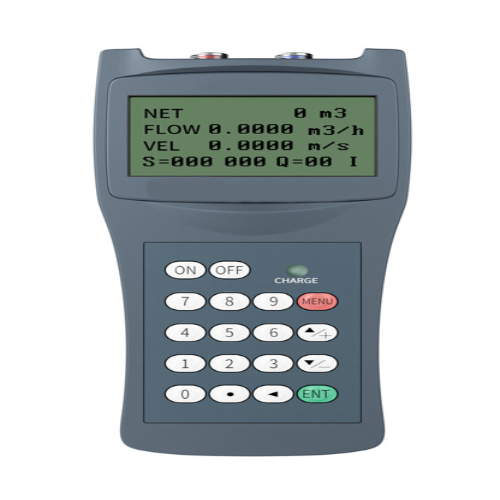

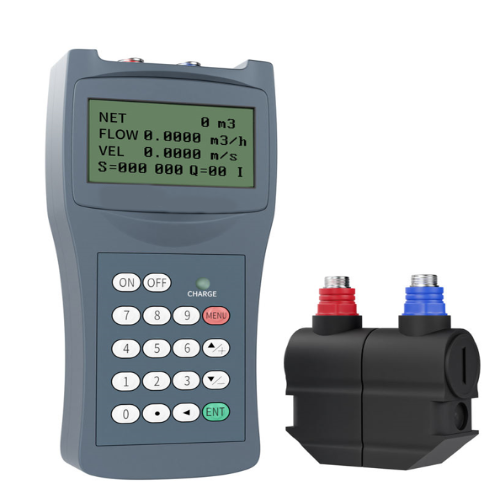

Hospitality Enviro Tech handheld ultrasonic flow meter uses an external clamp type sensor to measure liquid flow rate. The installation process is extremely simple, with a fully Chinese human-machine interface that is easier to operate. Especially suitable for flow balance testing and flow monitoring: drinking water, river water, seawater, cooling water, hot water, industrial wastewater, lubricating oil, diesel, fuel oil, chemical liquids, etc.
Features
• Non-contact measurement method, small size, light weight, and easy to carry

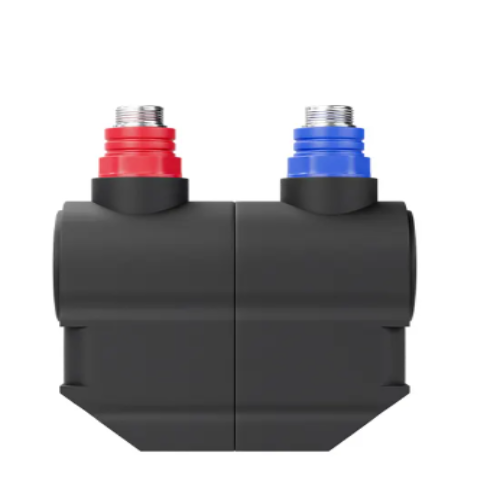

• The installation of the sensor is simple and easy, and it is used to measure the sound conducting medium of various sizes of pipelines
• The measurement process does not require damage to the pipeline, production does not need to be stopped, the sensor does not meet the measured medium, and there is no pressure loss
• Suitable for measuring metal pipelines, plastic pipelines, and other sound transmitting materials
• Equipped with a rechargeable battery, it can work continuously for more than 12 hours
• Intelligent on-site printing function ensures the completeness of traffic data
Technical Specifications
| Product Name | Handheld Ultrasonic Flow Meter |
| Pipe diameter range | 0.7 in to 157.48 in (20 mm to 4000 mm) |
| Flow velocity range | 0.01 m/s to 12 m/s |
| Accuracy | ±1 % |
| Measuring liquids | Homogeneous fluids such as water, river water, sea water, petroleum, chemical liquids, etc. |
| Pipe Material | Metallic, non-metallic, and other material pipelines |
| Output | Handheld: RS-232 optional desktop printer |
| Measurement function | Display instantaneous flow rate, instantaneous flow rate, positive cumulative flow rate,negative cumulative flow rate, cumulative operating time, and print the cycle. |
| Ambient temperature | Converter: 14 °F to 113 °F (-10 °C to 45 ºC) Sensor: -22 °F to 140 °F (-30 °C to +60 ºC) -22 °F to 320 °F (-30 °C to +160 ºC) (high-temperature type) |
| Protection grade | Converter: IP52 Sensor: IP68 |
| Charging and working power supply | AC 220 V built-in 12 V lithium battery |
