Overview
The flowmeter have no moving parts, reliability, high precision, long life, can be in a very wide range of flow accurately measuring the instantaneous flow and cumulative flow medium, it is not affected by medium, the influence of temperature, pressure, viscosity and component without plugging, not easy to scale, high temperature resistant, high voltage, safety explosion-proof, suitable for bad environment. Flow scoring integrated display and remote display, and output pulse signal, current signal or 485, Hart protocol and computer networking.
Features
- Gas
- Liquid
- Vapor

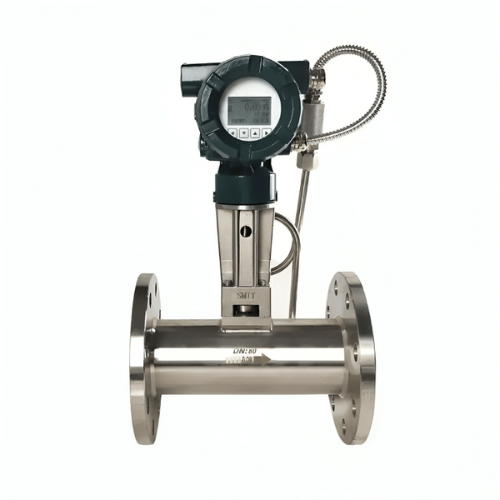

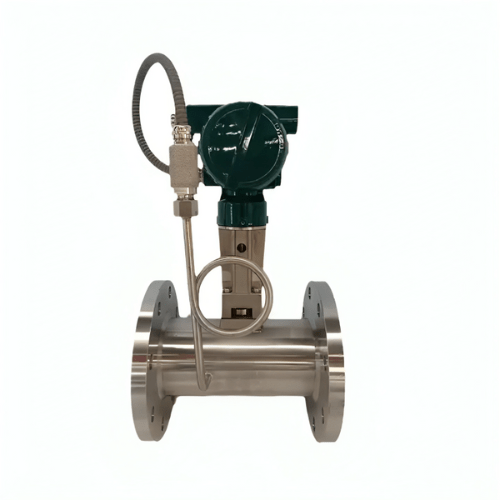

- Flange

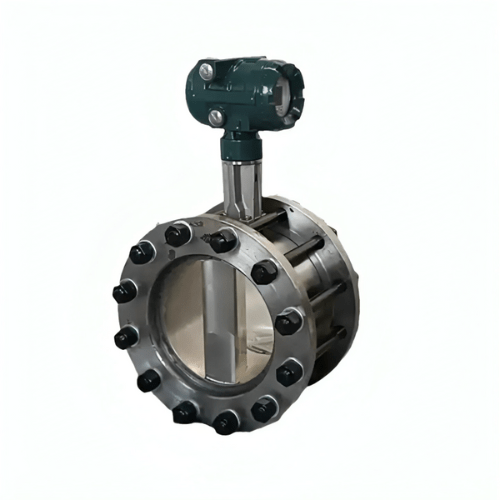

- Clamped-in style
- Camping band
- Display and User Interface
- Screw thread

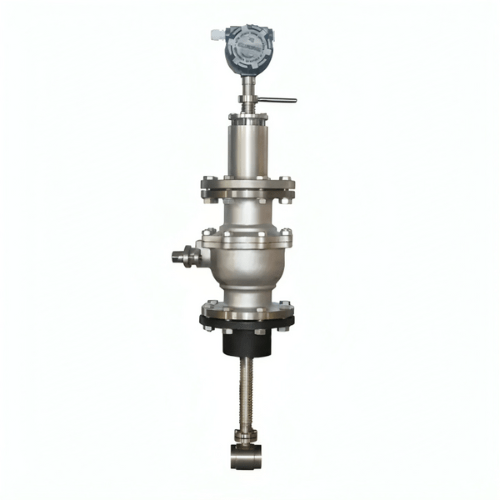

- Plug-in
Technical Specifications
| Medium | Gas liquid steam |
| Accuracy | 1.5% |
| Power Supply | 24 VDC, 3.6 V Lithium Battery |
| Output | 4 mA to 20 mA, RS485, pulse |
| Size | DN 15 to DN 300 |
| Connection | Flange Clamp Thread |
| Material | SS 304, SS 316 |
| Pressure | 0.6 MPa to 4.0 MPa |
| Temperature | -4 0F to 482 0F (-20 0C to 250 0C) |
